| Quantity: | |
|---|---|
505kg
10 Years
5 Years

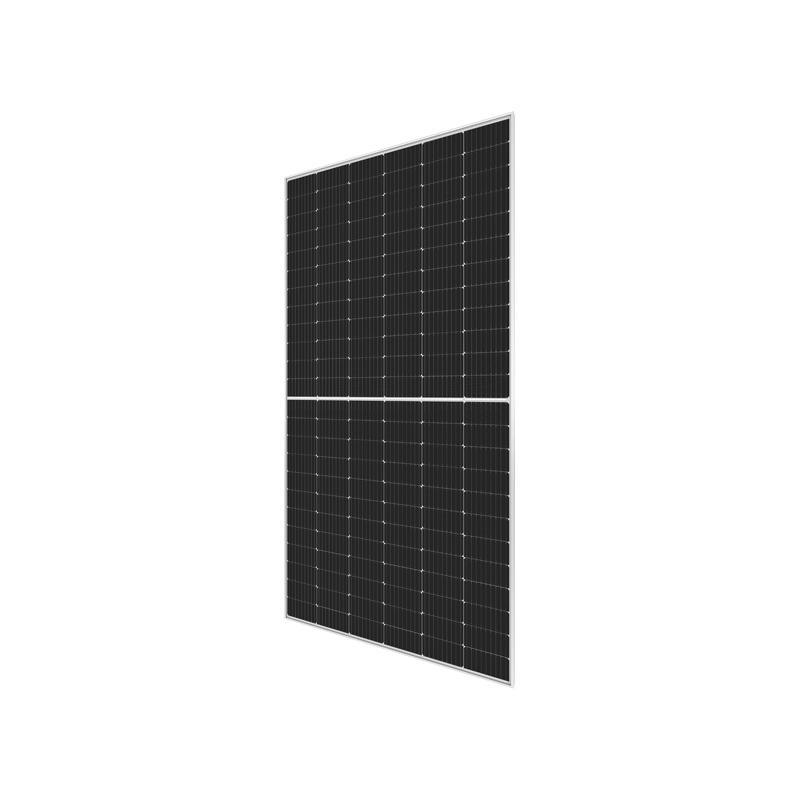

| Battery type | Component weight | Component size | Number of batteries | Cable cross-sectional area | Junction Box | Connector | Packaging information |

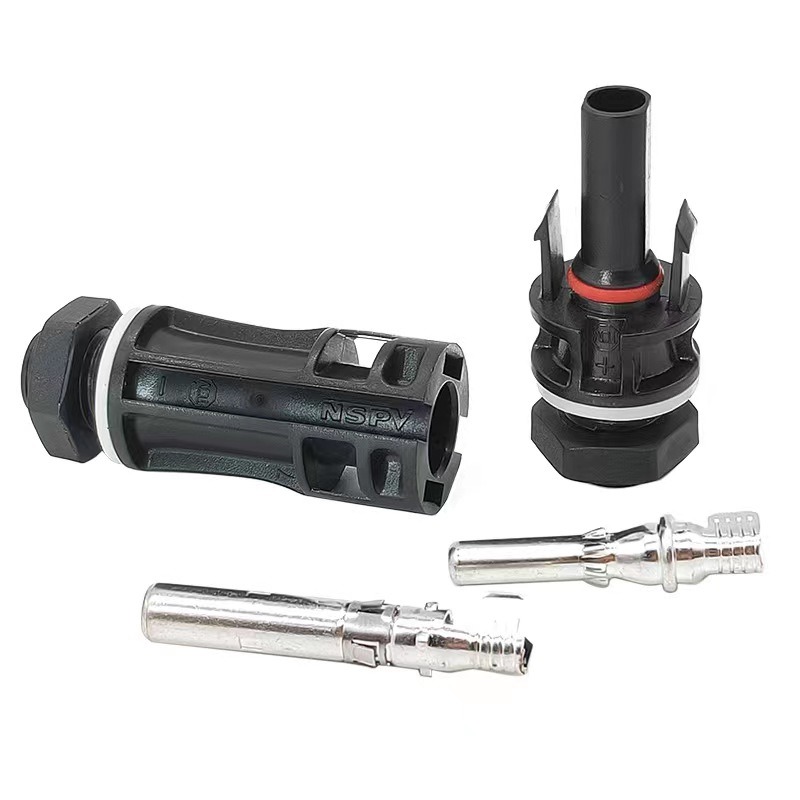

| monocrystalline | 27.5kg | 2279*1134*35mm | 144(6*24) | 4mm² | IP68, 3 diodes | MC4 compatible connector | 31 pieces per pallet |

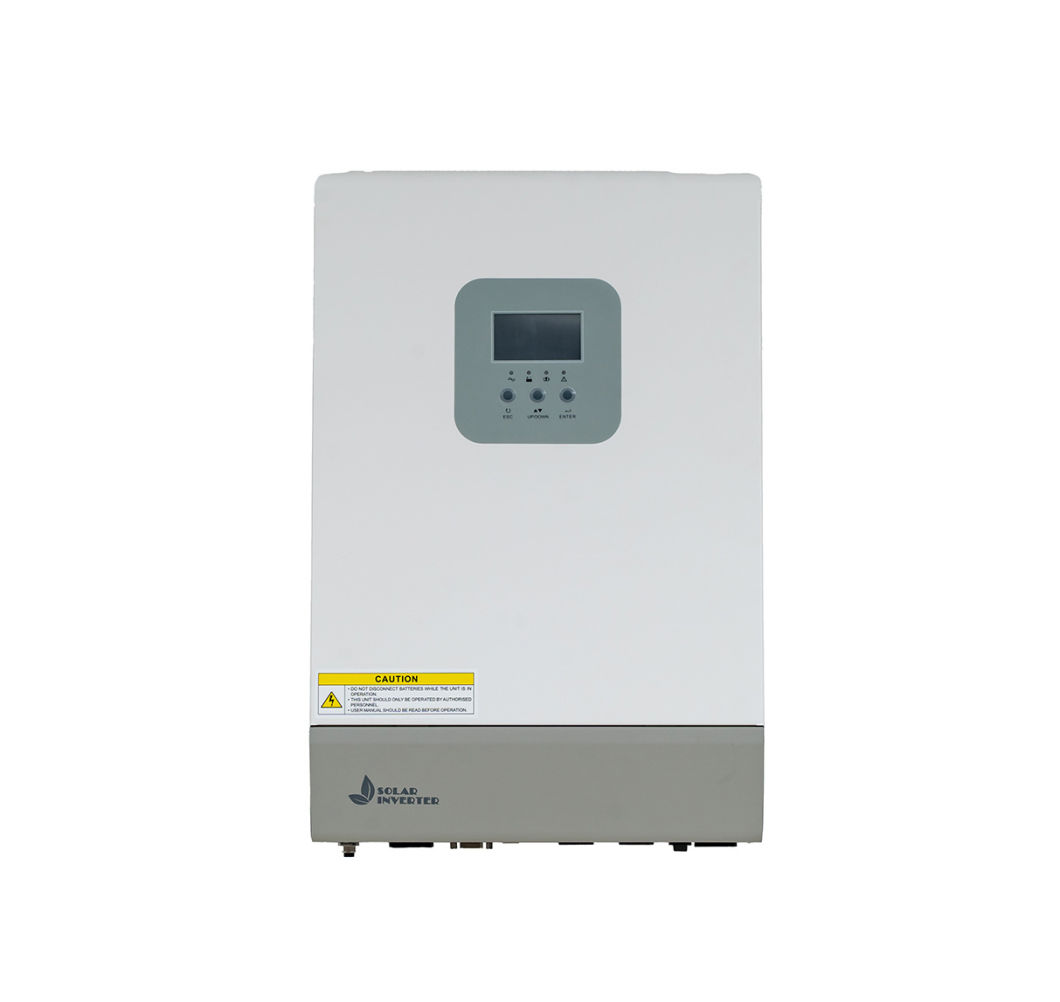

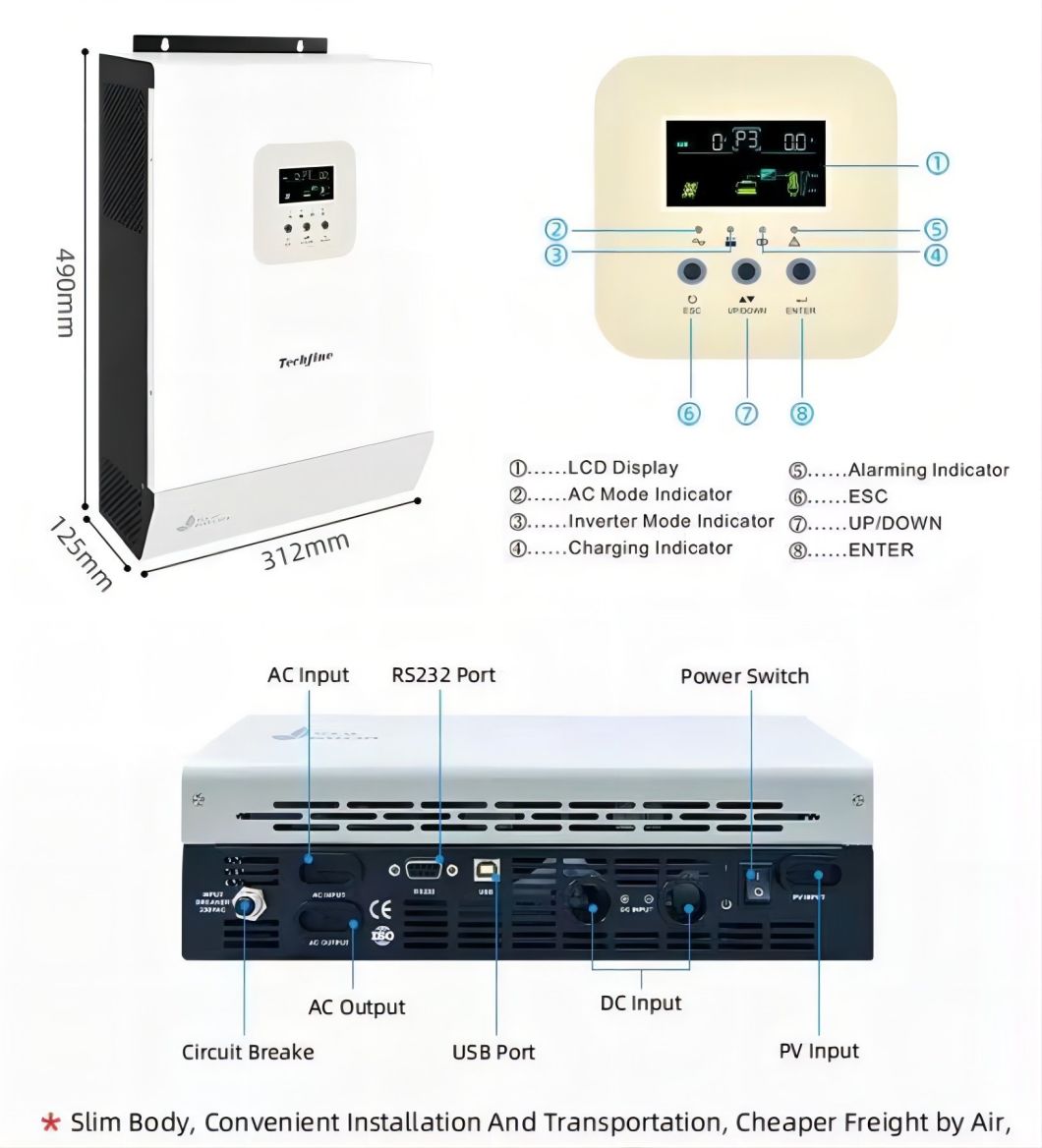

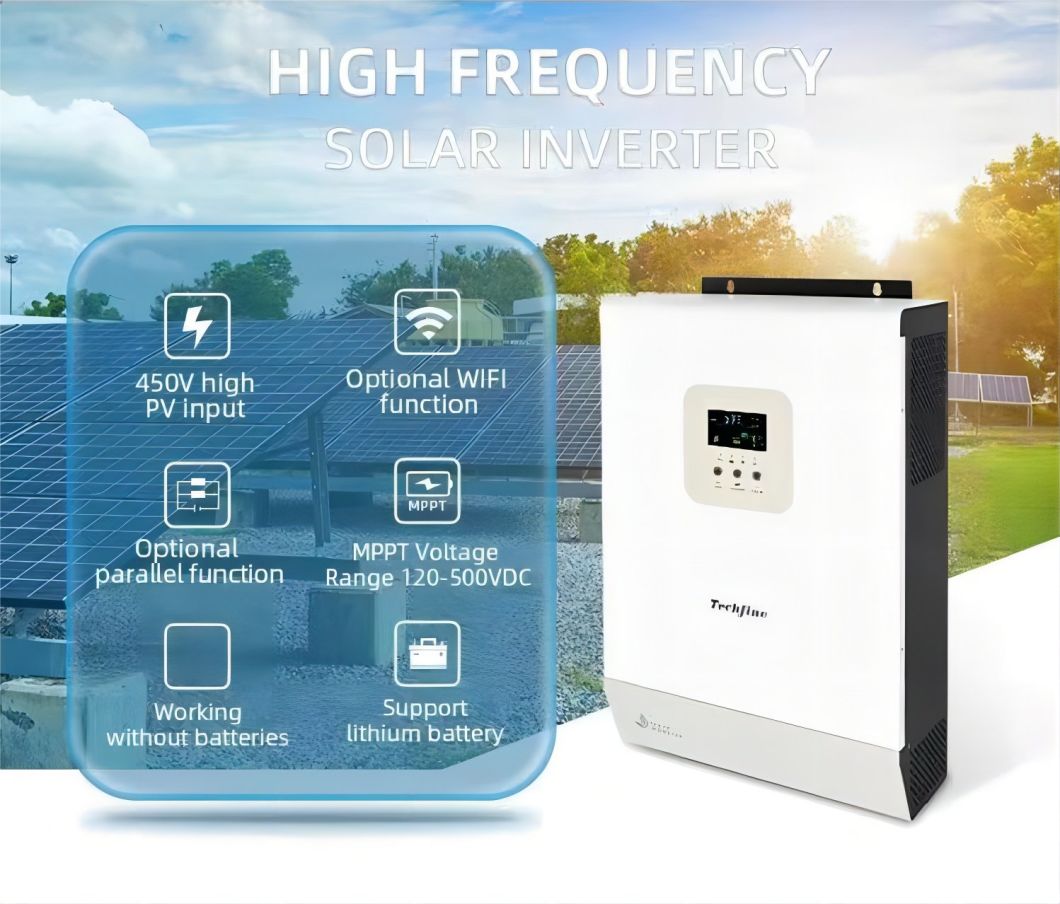

| High Frequecny Solar Inverter GA series | ||||
| Model | GA3024ML | GA5048M | ||
| Input Formation | L+N+PE | |||
| Input | AC Input | 208/220/230/240VAC | ||
| Input Voltage Range | 154-264VAC + 3V (Normal Mode) 185-264VAC±3V (UPS Mode) | |||
| Frequency | 50/60Hz±5%(Adaptive) | |||
| output | Rated Power | 3000W | 5000W | |
| Output Voltage | 208/220/230/240VAC 5% | |||
| Output Frequency | 50/60Hz±0. 1% | |||
| Output Wave | Pure Sine Wave | |||
| Transfer Time(Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment | |||
| Peak Power | 6000VA | 10000VA | ||
| Overload Ability | Battery Mode: lmin@102%~110% load 10s@U0%~130% load 3s@130%~150% load 200ms@>150% load | |||
| Peak Efficiency | >94% | >94% | ||
| Battery | Rated Voltage | 24VDC | 48VDC | |
| Constant Charging Voltage (Adjustable) | 28.2VDC | 56.4VDC | ||
| Float Charging Voltage (Adjustable) | 27VDC | 54VDC | ||
| Charger | PV Charging Method | MPPT | MPPT | |
| Max PV Input | 1500W | 5500W | ||
| MPPT Tracking Range | 30~115VDC | 120~430VDC | ||
| MAX PV Input Voltage | 145VDC | 450VDC | ||
| MAX PV Charge Current | 60A | 80A | ||
| MAX AC Charge Current | 60A | 80A | ||
| MAX Charge Current | 120A | 80A | ||
| Display | LCD | Can display operating mode/load/input/output | ||
| Communication Port | RS232 | 5PIN/Pitch2. 54mm,Baud Rate 2400 | ||
| Expansion Slot Communication Interface | 2X5PIN/Pitch2. 54mm.BMS,WIFI,2X5PIN/Pitch2. 54mm, Lithium Battery BMS Communication Card, WIFI | |||
| Parallel Interface | Not Support Parallel | Support Parallel | ||
| Ambient Temperature | Operating Temperature | 0°C~40°C | ||
| Storage Temperature | -15°C~60C | |||
| Ork Altitude | 1000m,4000m, IEC62040 | |||
| No more than 1000m, If 1000m< , Rate power will lower, MAX 4000m, Refer to IEC62040 | ||||
| Operating Environment Humidity | 20%~95% Non Condensing | |||
| Noise | <50dB | |||
| Dimension | L*W*H (mm) | 490*312*125mm | ||
| Standards and Certifications | EN-IEC 60335-1, EN-IEC 60335-2-29 | |||
1. Q: Why do I choose your company?
A: We hold the idea that we provide reliable products and valuable services to help our customers have a growing and profitable business. Thanks giving is the core culture of our company!
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?
A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
