All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Yes

  • 25 Years

  • 54cells

Product Description

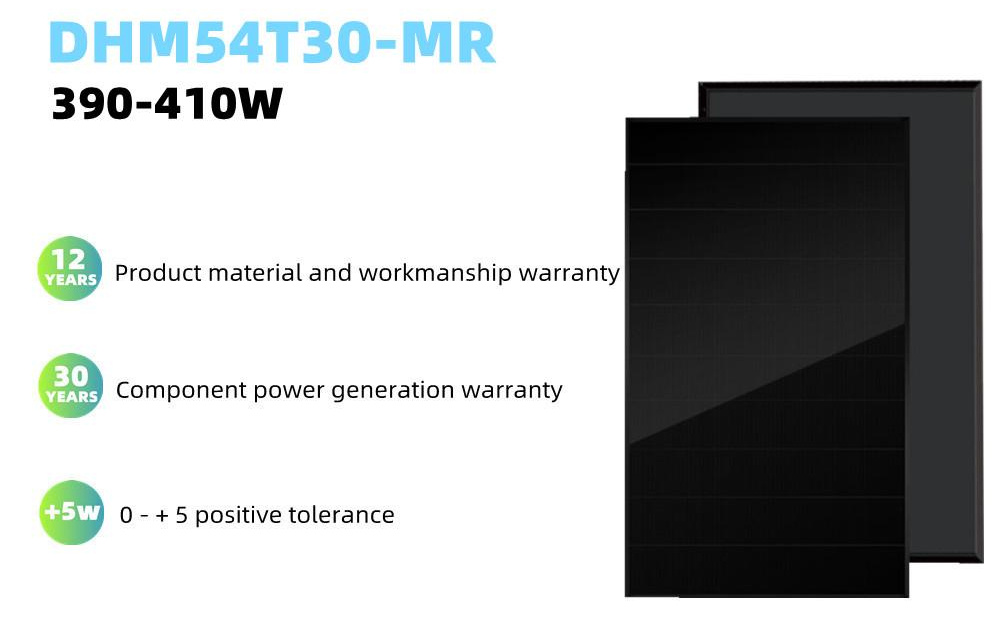

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse
1. Adopting multi-main shed (MBB) half-sheet technology, the output power is away from 410W, and the conversion efficiency of the module reaches 21%.
2. Anti-PID performance. The PID (Potential Induced Degradation) resistance authority test(85°C/85% RH, 96 hours) under the harsh conditions of the industry minimizes the chance of degradation caused by the PID.
3. 9/10 main grid cell, with stronger current collection capacity and more stable power output.
4. Mechanical load. Certified for wind load of 2400 Pa at the back of the assembly and snow load of 5400 Pa at the front.
5. Excellent low light power generation performance. Excellent electrical performance output under low light conditions.
6. Low light attenuation. Rigorous ATLAS steady-state light testing ensures excellent photoluminescence performance for each batch of modules.
7. Rigorous EL testing. Spatial resolution is less than 0.5 mm,and more than two EL tests before and after to ensure zero defects inside the component.
8. Fully automated component production line. Guarantee 100% online production 100% online inspection to ensure consistent product quality.

Product Parameters

Electrical performance parameters under STC
Model DHM54T30-390/MR DHM54T30-395/MR DHM54T30-400/MR DHM54T30-405/MR DHM54T30-410/MR DHM54T30-415/MR
Maximum power (W) 390W 395W 400W 405W 410W 415W
Voltage at maximum power point (VMP/V) 30.59V 30.71V 31.01V 31.31V 31.60V 31.89V
Current at maximum power point (IMP/A) 12.78A 12.86A 12.90A 12.94A 12.97A 13.01A
Open circuit voltage (VOC/V) 36.54V 36.72V 37.24V 37.24V 37.50V 37.73V
Short circuit current (ISC/A) 13.66A 13.67A 13.75A 13.81A 13.88A 13.95A
Component efficiency [%] 20.12% 20.23% 20.48% 20.74% 21.00% 21.25%
Power tolerance(W) 0~+5
Standard test environment Irradiance1000W/m², ambient temperature25ºC, spectrumAM1.5
Note: Due to continuous innovation, research and product upgrades, the parameters in this specification do not refer to a single component and can only be used for comparison between types .

Certifications

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse

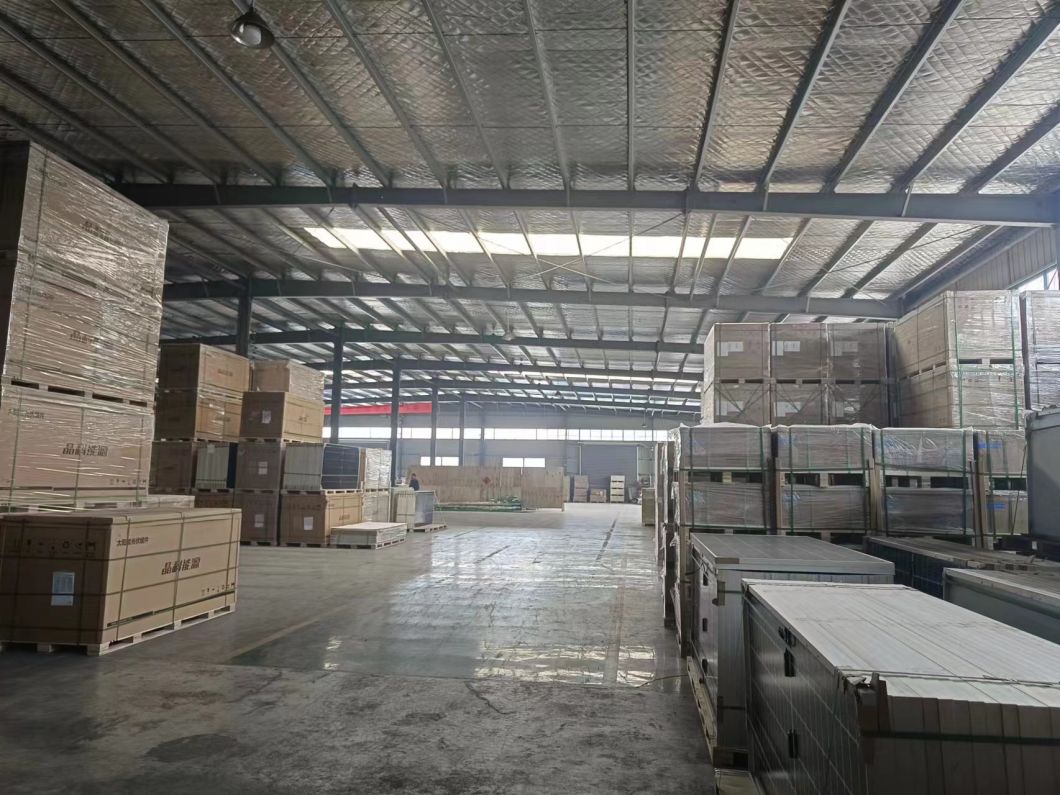

Packaging & Shipping

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse
MECHANICAL DATA
Dimensions 1722*1134*30mm
Cell Orientation 108cells(6*18)
Weight 20kg
Junction Box IP68, 3 diodes
Output Cable
4mm2, ±1200mm, length can be customized
Packing 36pcs per pallet; 936pcs per 40HQ

According to your products requirements , we will choose safe and economical transportation for you.
Payment method: 30% T/T in advance, 70% T/T before shipment

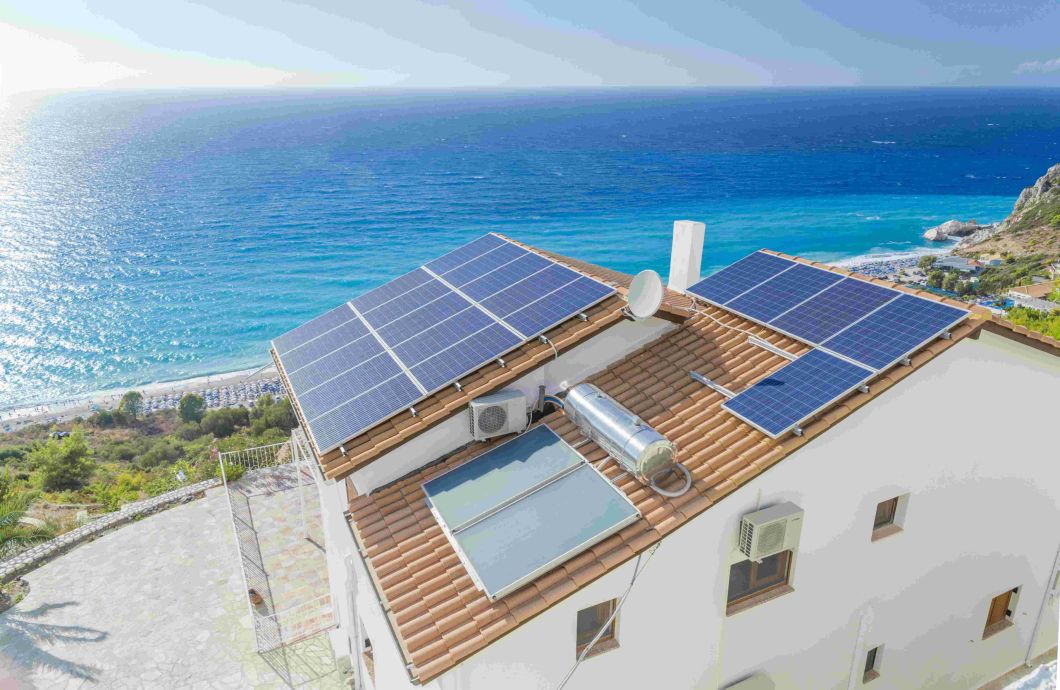

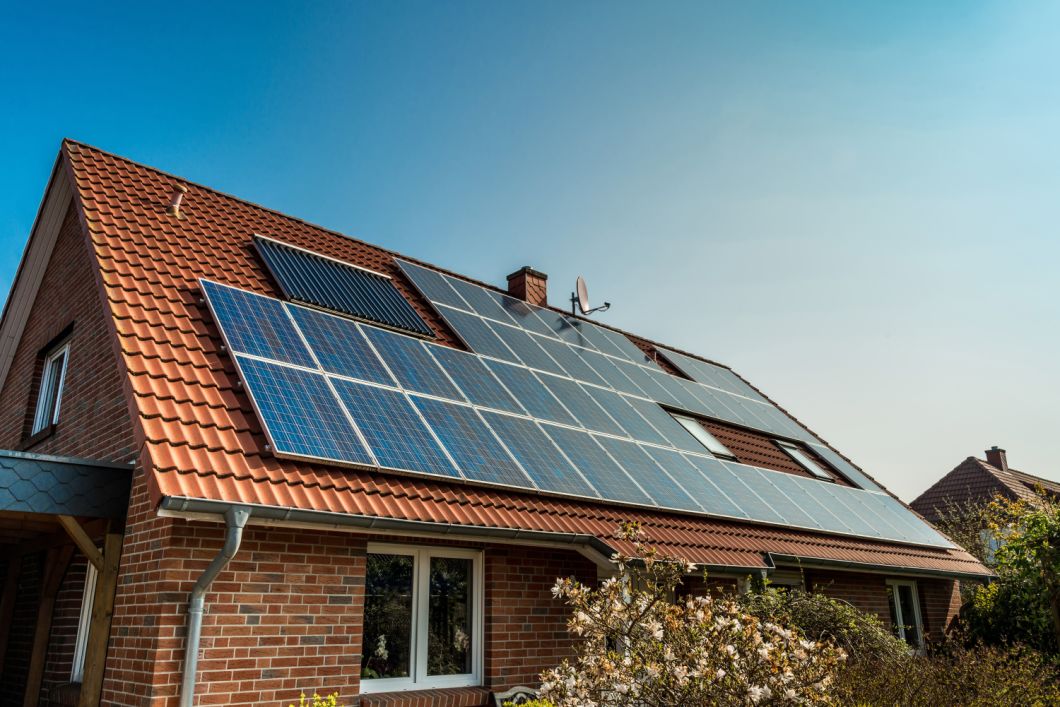

Installation Instructions

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse
All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse

Company Profile

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam WarehouseAll Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse

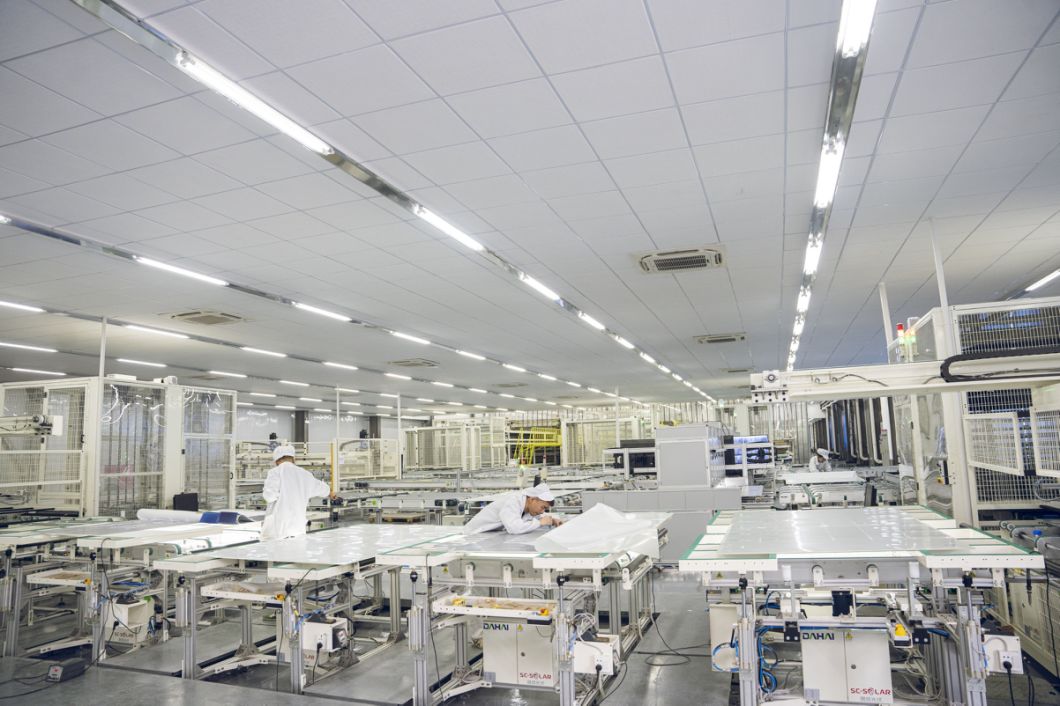

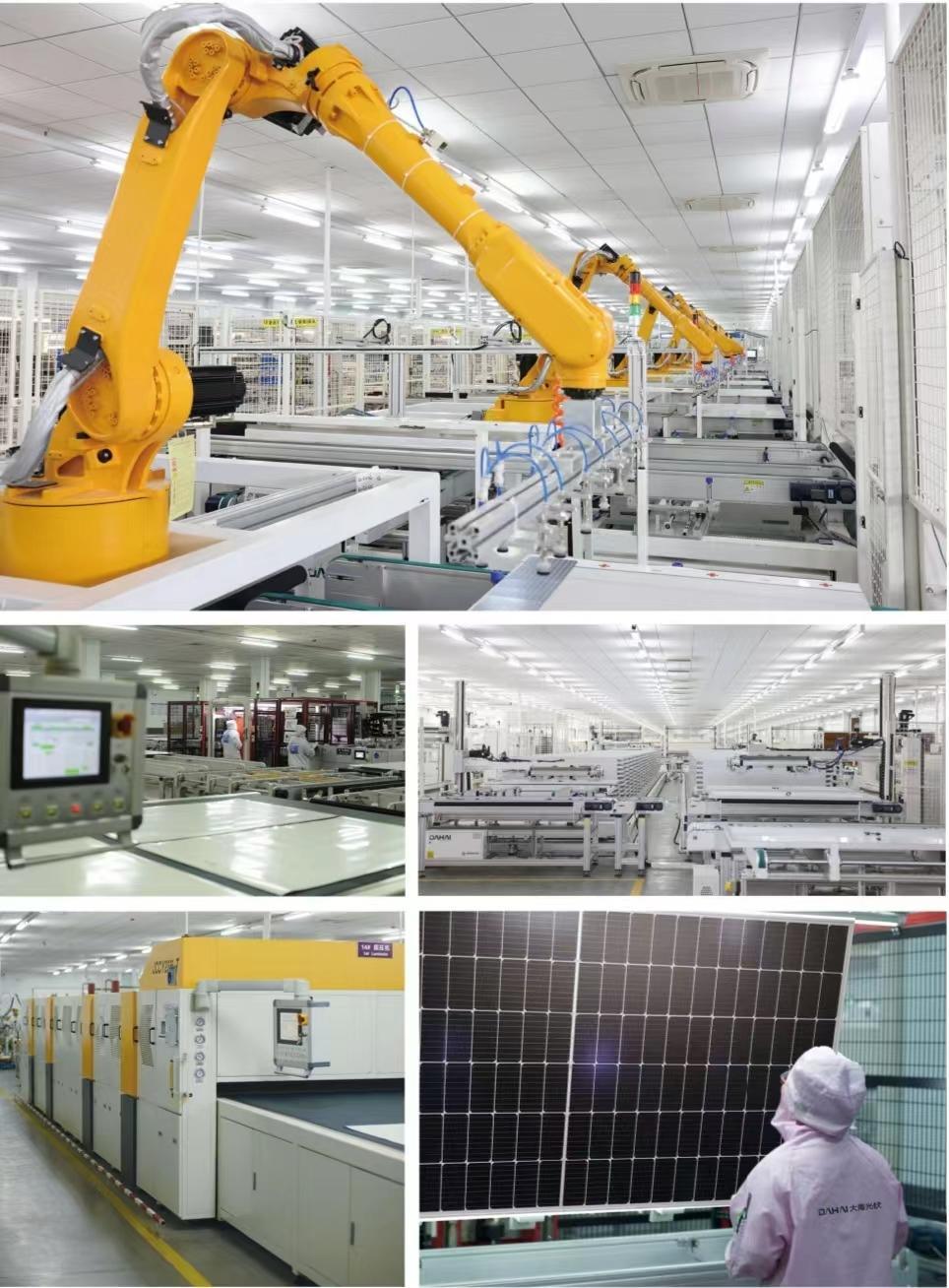

1.100% fully automatic production line,ensuring 100%in-line inspection on the production line. Effectively avoiding the risk of hidden cracks and inherent defects.improving efficiency, reducing manual errors,precision welding,and maintaining uniform product quality standards.
2.First-class photovoltaic testing center, up to 38 valid tests and experiments to ensure product quality.
High, medium and low current classification to improve system output performance.
3.Two EL tests before and after.12-focus EL to overcome depth-of-field differences,spatial resolution of 0.4-0.5mm high and low currents are tested separately, with zero tolerance for quality risks.
4.Long-term reliability testing.The PV testing center follows the standard of 3 times thousand conventional tests to guarantee the longer life cycle of the modules

All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse
All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse
All Black A Grade Mono Solar PV Module 395W 400W 405W 410W Solar Panel in Rotterdam Warehouse

FAQ

1. Q: Why choose we?
A: 12-year product materials and workmanship warranty and 25-year linear power output warranty.
B: Anti-PID (Potential Induced Degradation) performance and rigorous EL testing.
C: Excellent low light power generation performance and fully automated component production line.


2. Q: Can I have my own customized product?
A: Yes, our customized requirements for logo, design, outer package are available.

3. Q: What certificates do you have?
A: Our solar products have got ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe) and TUV (Technischen Uberwachungs Vereine).

4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.

5. Q: Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
