| Quantity: | |
|---|---|
Yes
25 Years
66PCS
*High customer value
·Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time

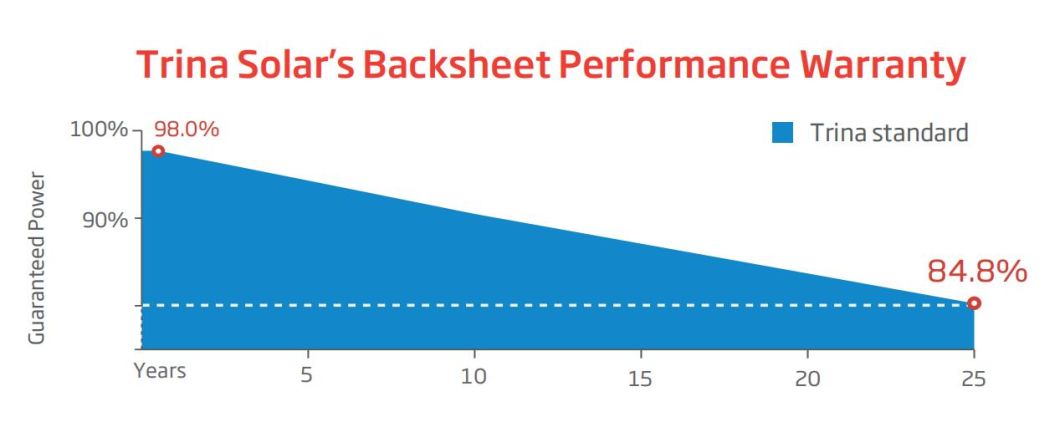

·Lowest guar anteed first year and annual degradation;
·Designed for compatibility with existing mainstreaim system components

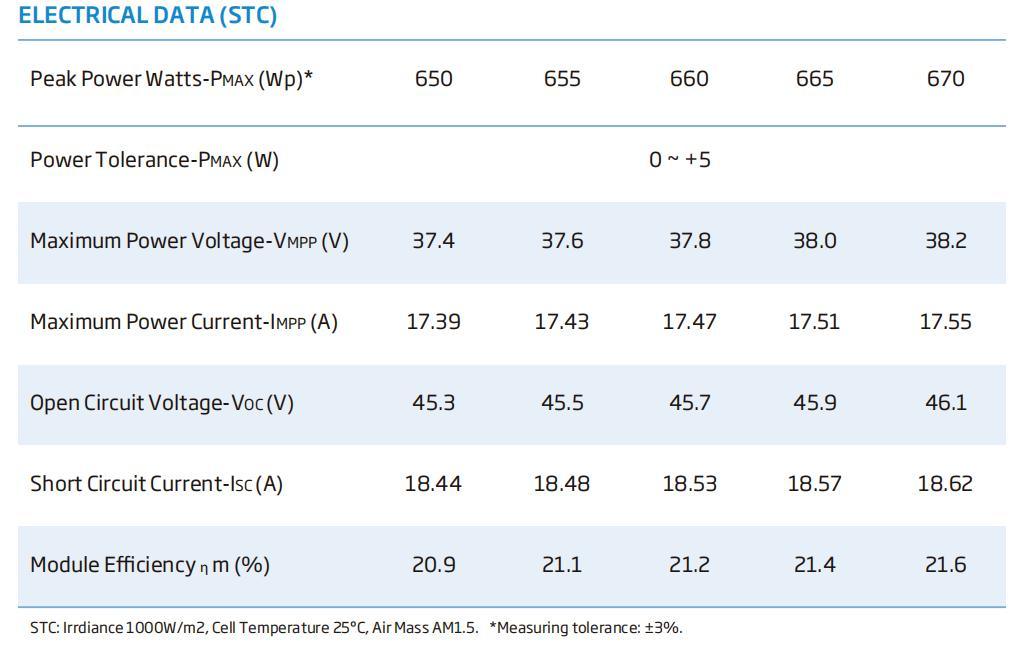

*High power up to 670W
·Up to 21.6% module efficiency with high density interconnect technology
·Multi-busbar technology for better light trapping effect, lower series resistance and innproved current collection
*High reliability
·Minimized micro-cracks with innovative non-destructive cutting technology
·Ensured PID resistance through cell process and module material control
·Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
·Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
*High energy yield
·Excellent IAM (Incident Angle Modifier) and low irradiation performance, validated by 3rd party certifications
·The unique design provides optimized energy production under inter-row shading conditions

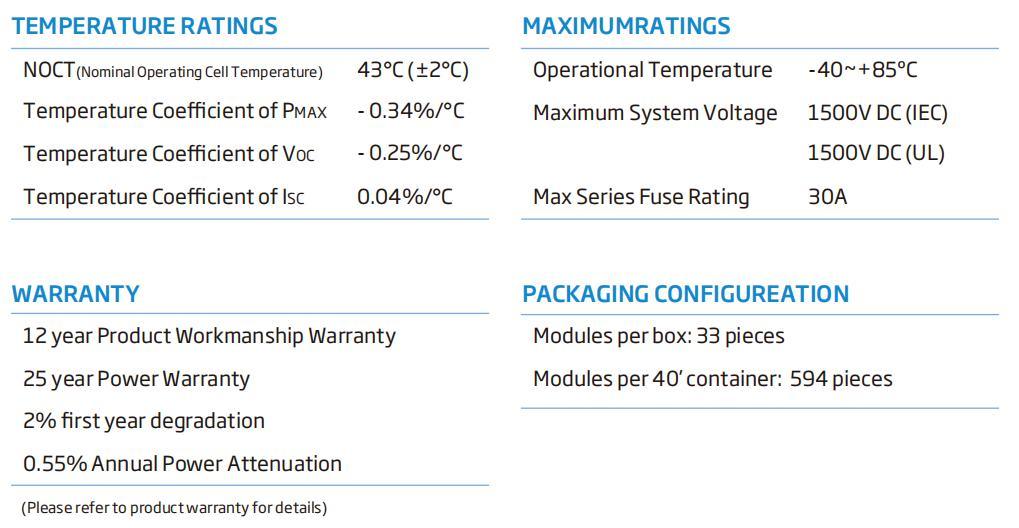

·Lower temperature coefficient (-0.34%6) and operating temperature
| Mechanical parameters | |||||||
| Cell type | Component weight | Component size | Number of batteries | Cable cross-sectional area | Junction Box | Connector | Packaging information |
| monocrystalline | 33.3kg | 2384*1303*33mm | 132(6*22) | 4mm² | IP68 Rated | MC4 EVO2 / TS4* | 33 pieces per pallet |

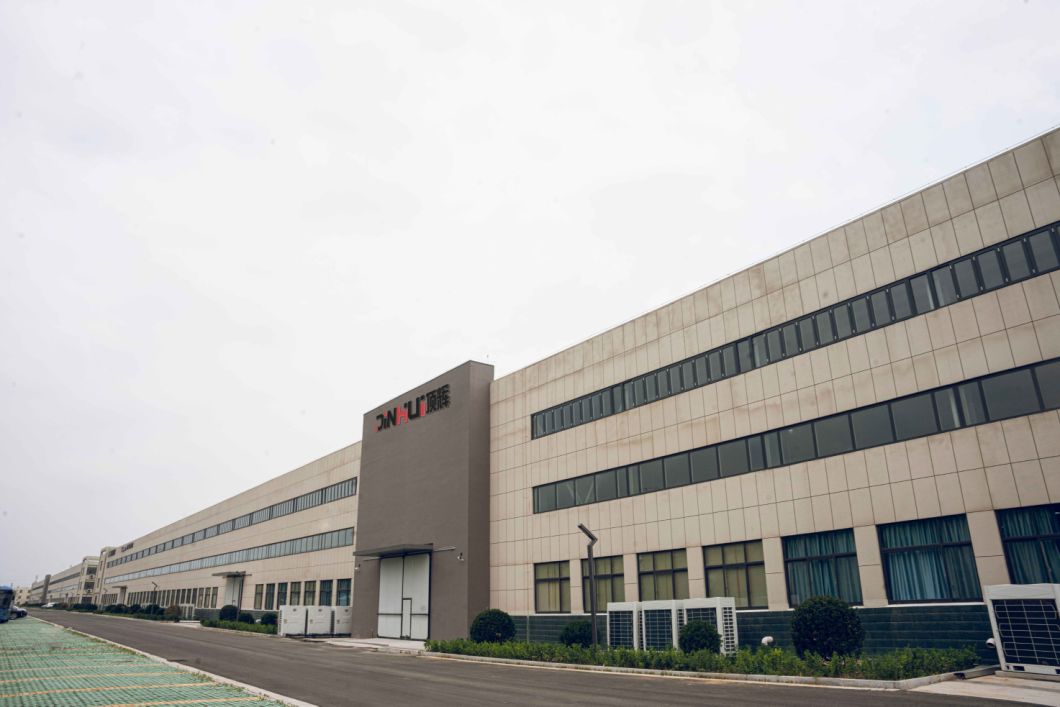

Dinghui New Energy(DeZhou) Co., Ltd. was established in 2017, a photovoltaic enterprise integrating R&D, production, sales of solar products, which is committed to the overall solution of distributed photovoltaic system, providing consulting, design, construction, operation and maintenance and other overall services.
Top company's products include solar cells, solar panels, solar off-grid system schemes and other related application products. With excellent product quality, our products have got ISO, CQC, CE, IEC, SGS and other international certifications and have been exported to many countries and regions.

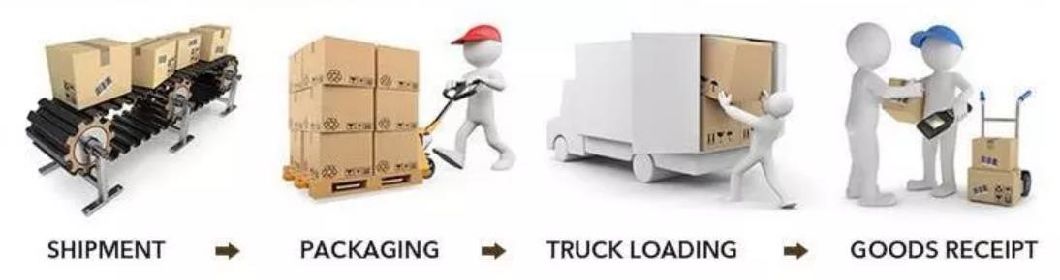

Standard exporting Wooden pallets and cartons: After placing the order and loading, we will provide you with a flash report.
1. Q: Why do I choose your company?
A: We hold the idea that we provide reliable products and valuable services to help our customers have a growing and profitable business. Thanks giving is the core culture of our company!
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?
A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
