Yes
25 Years
132 Cells
Industral, Household, Commercial
New
ISO, CE
High customer value
• The star of LCOE (Levelized Cost Of Energy) .Higher string power feature effiectively reduces BOS (Balance of System)and LCOE
•More energy harvest with cutting-edge N-type i-TOPCon technology
•Designed for compatibility with existing mainstream system components
High power up to 700W
• Up to 22.5% module efficiency with high density interconnect technology
• SMBB (Super multi-busbar) technology for better light trapping effect, lower series resistance and improved current collection
High reliability
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
High energy yield

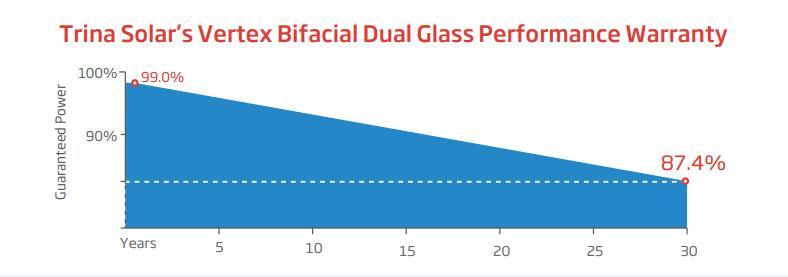

• Excellent product bifaciality and low irradiation performance, validated by 3rd party • Lower degradation:1% first year,0.4% annually thereafter
• Lower temperature coe cient (-0.30%)
• Up to 30% additional power gain from back side depending on albedo

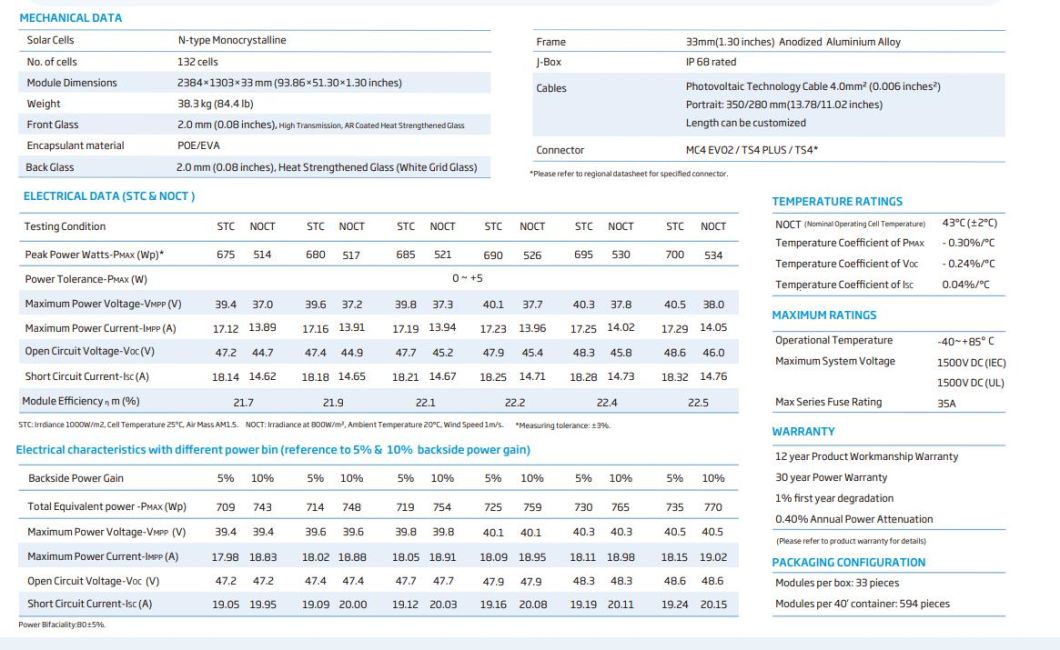

| parameters | |||||||
| Cell type | Component weight | Component size | Number of batteries | Cable cross-sectional area | Junction Box | Connector | Packaging information |
| monocrystalline | 38.3 kg | 2384*1303*33mm | 132 | 4mm² | IP68 Rated | TS4 / MC4 EVO2* | 33 pieces per pallet |

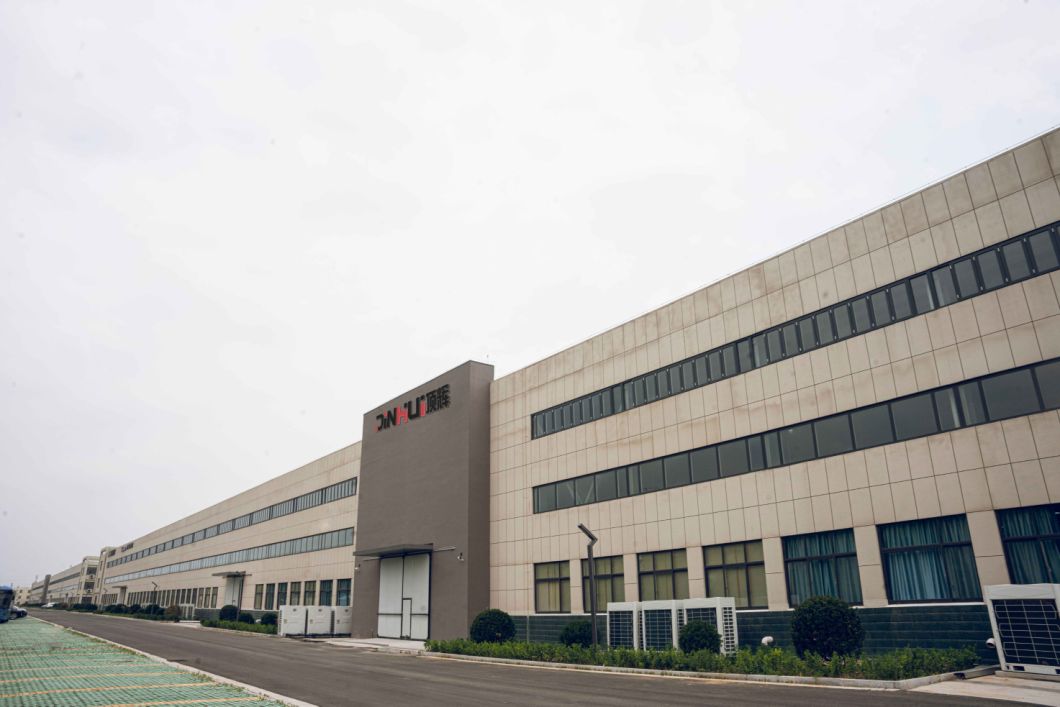

Dinghui New Energy(DeZhou) Co., Ltd. was established in 2017, a photovoltaic enterprise integrating R&D, production, sales of solar products, which is committed to the overall solution of distributed photovoltaic system, providing consulting, design, construction, operation and maintenance and other overall services.

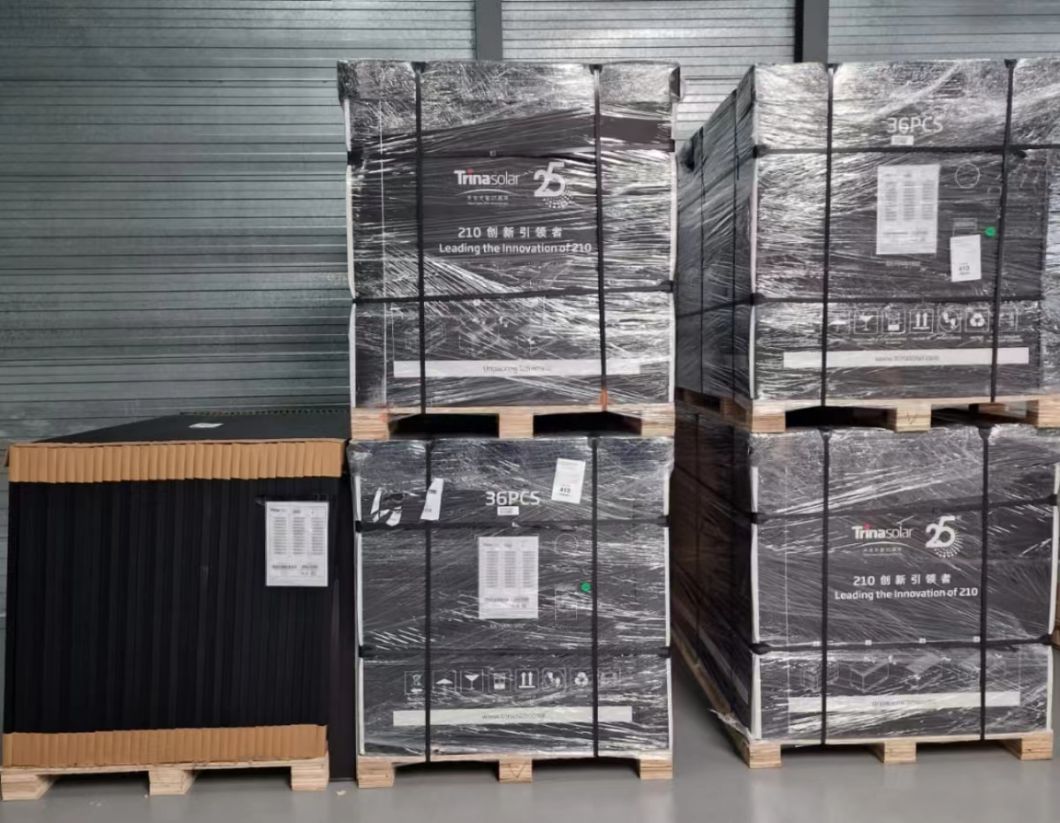

Standard exporting Wooden pallets and cartons: After placing the order and loading, we will provide you with a flash report.
1. Q: Why do I choose your company?
A: We hold the idea that we provide reliable products and valuable services to help our customers have a growing and profitable business. Thanks giving is the core culture of our company!
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?
A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
