Yes
25 Years
108cells

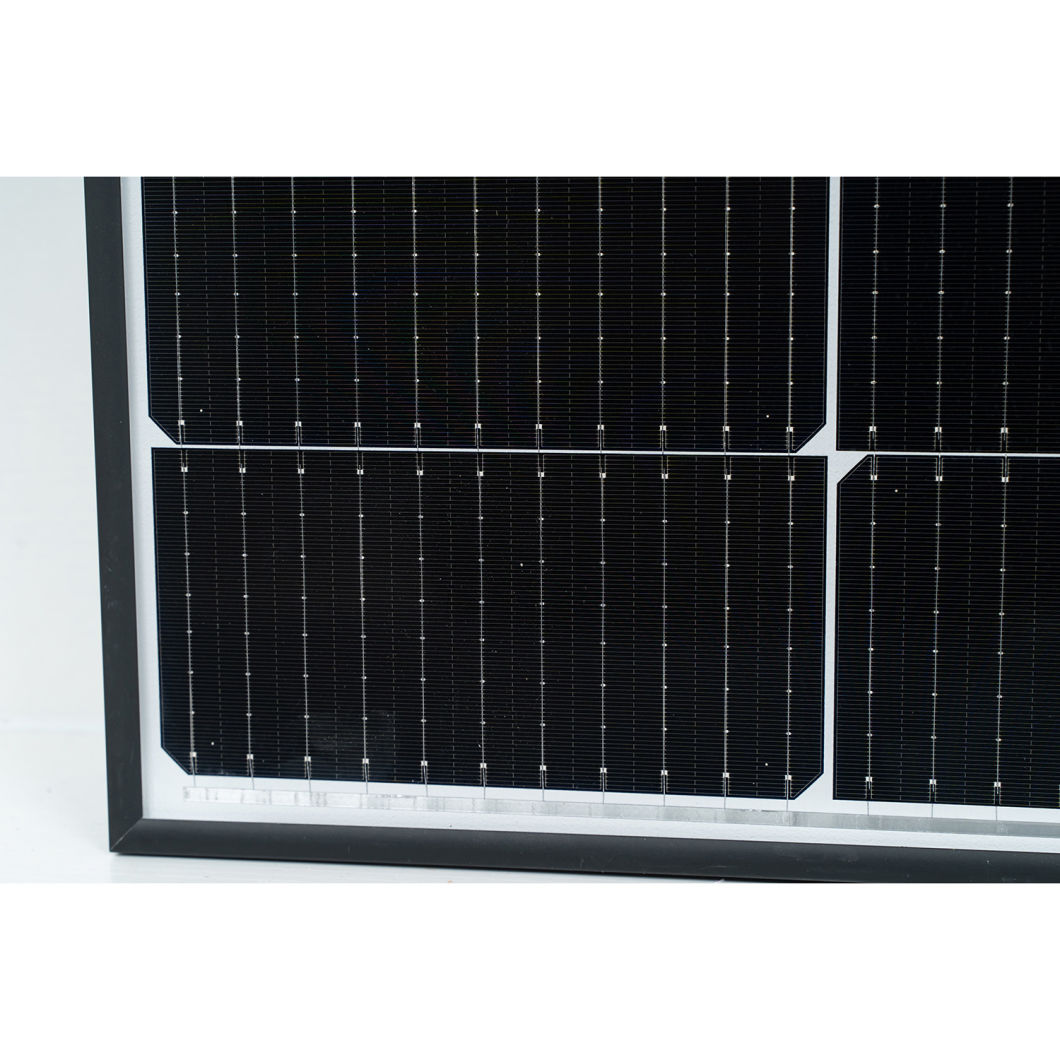

*Aesthetics:
Ultimate look of black modules, perfectly
matching the owner's aesthetic pursuit
*Quality:
Over 40 years of manufacturing experience
in house wafer, cell and module
*Guarantee:
Warranty comes from one of the most
financially healthy PVproviders
*Service:
Customer-orientedand local Senvices
12 Years product warranty

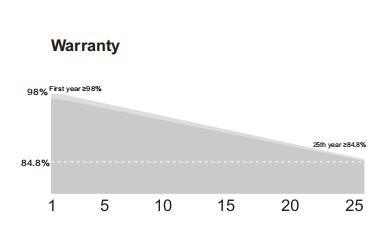

25 Years power output warranty

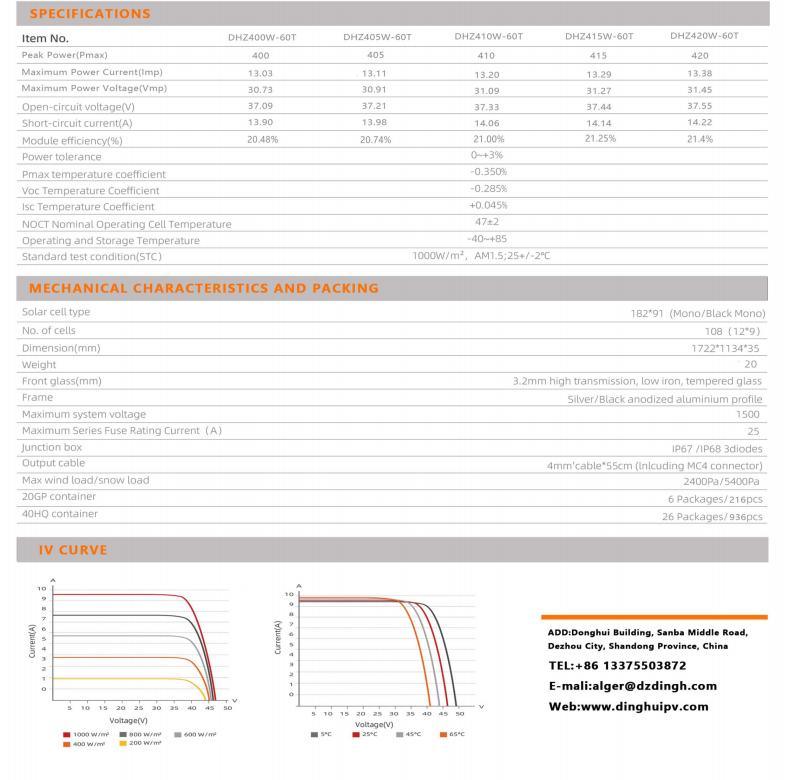

| Mechanical Data | |
| Cell Type | Mono-crystalline |
| Cell Arrangement | 108 |
| Module Dimensions | 1722x1134x35mm |
| Weight | 20.0Kg |
| Module Structure | Glass/Encapsulant/Glass |
| Glass Thickness | 2.0mm+2.0mm |
| PV module classification | Class II |
| Junction Box Rating | IP67/IP68 |
| Cables | 4mm2/1100mm or Customized Length |
| Connector Type | MC4/MC4 Compatible(IOOOV) EVO2/EVO2 Compatible(1500V) |

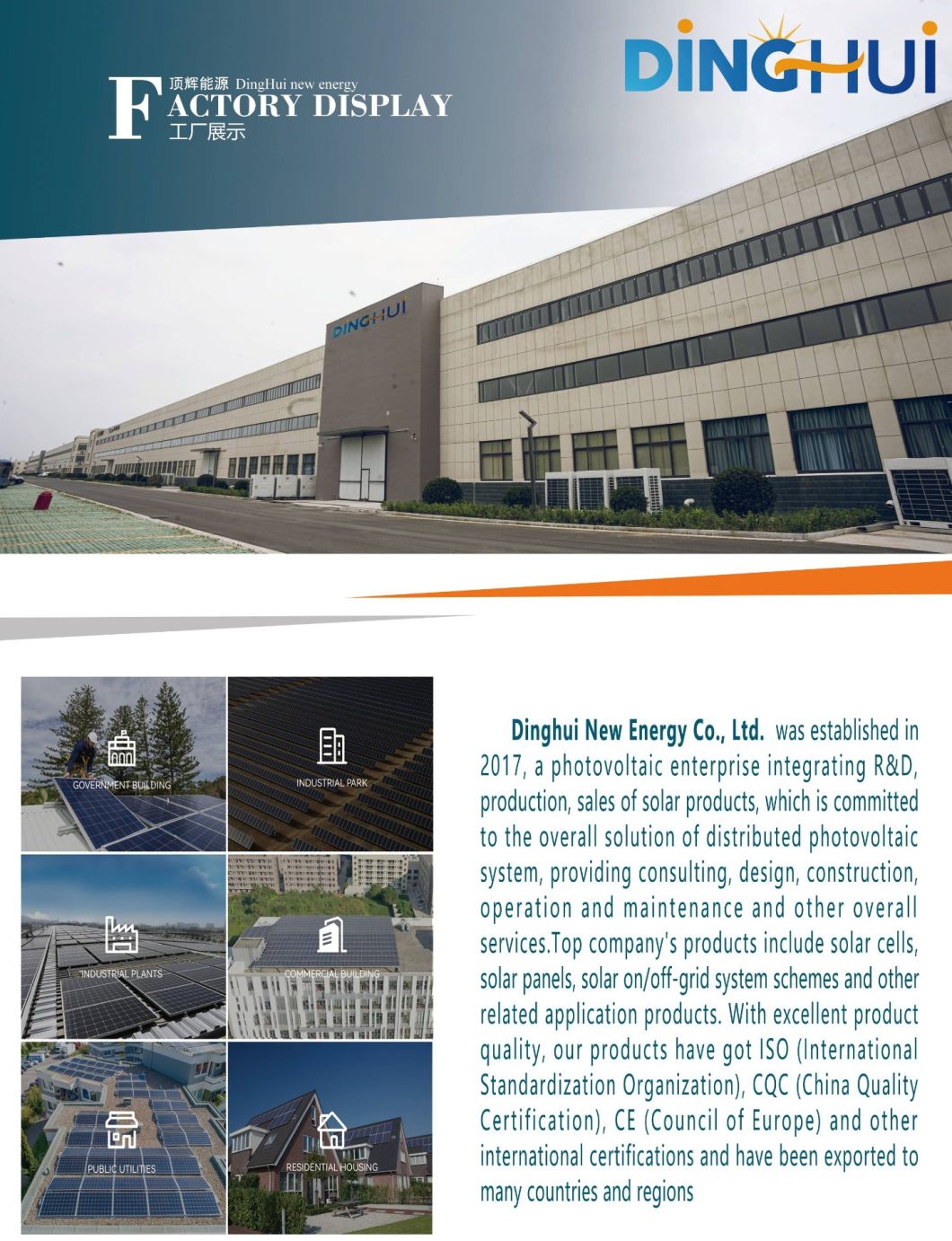

Dinghui New Energy(DeZhou) Co., Ltd. was established in 2017, a photovoltaic enterprise integrating R&D, production, sales of solar products, which is committed to the overall solution of distributed photovoltaic system, providing consulting, design, construction, operation and maintenance and other overall services.
Top company's products include solar cells, solar panels, solar off-grid system schemes and other related application products. With excellent product quality, our products have got ISO, CQC, CE, IEC, SGS and other international certifications and have been exported to many countries and regions.
| Packaging | ||
| Pallet dimensions | 1750x1280x1250mm | |
| Container | 40'HQ | |
| Pieces per Pallet | 36 | |
| Pieces per Container | 936 | |

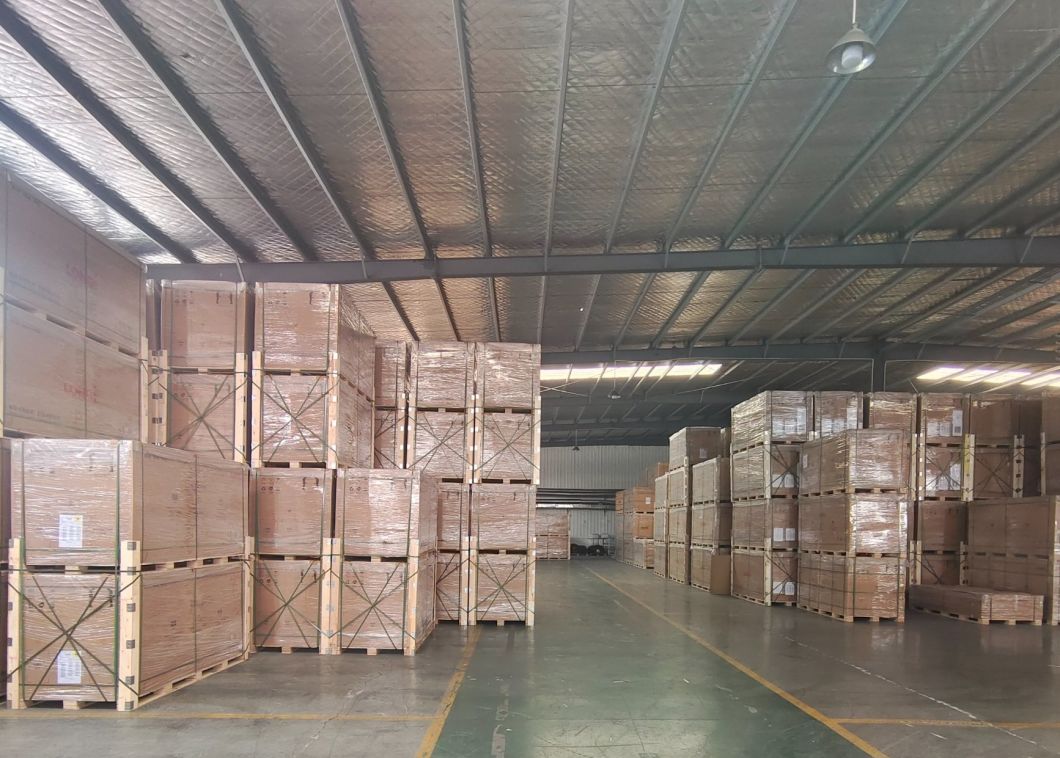

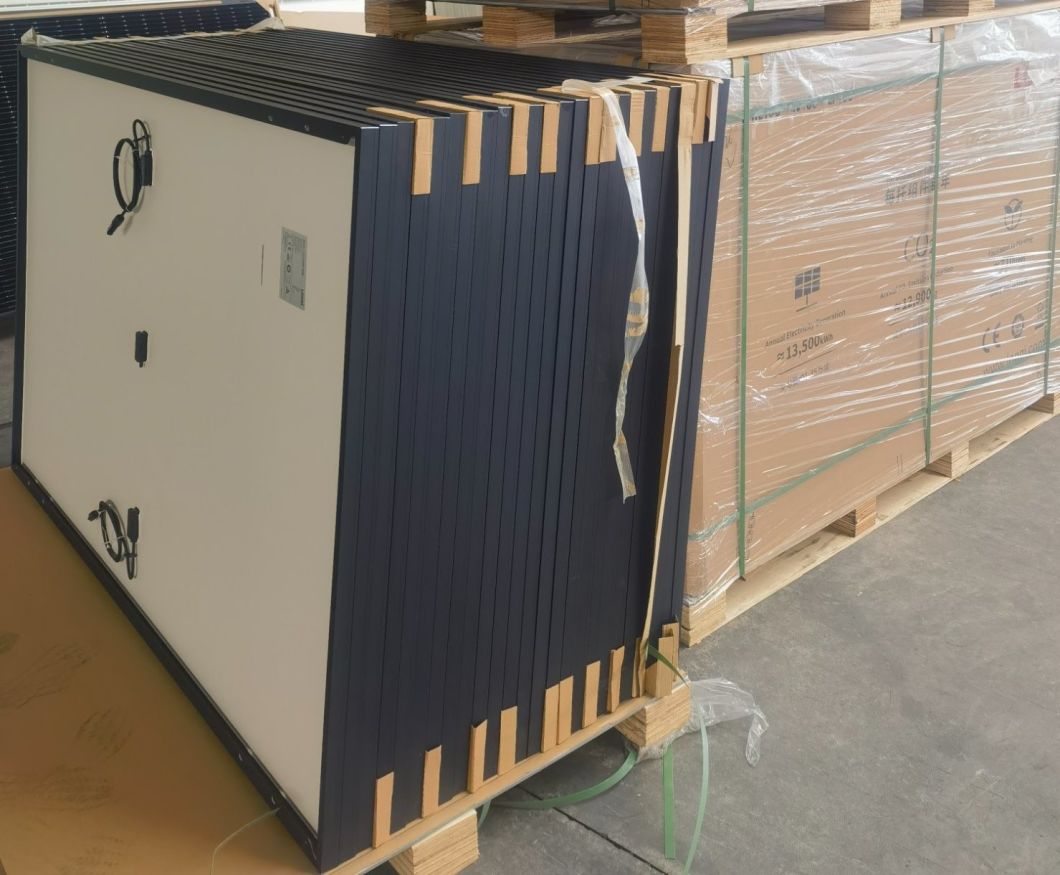

Standard exporting Wooden pallets and cartons: After placing the order and loading, we will provide you with a flash report.
1. Q: Why do I choose your company?
A: We hold the idea that we provide reliable products and valuable services to help our customers have a growing and profitable business. Thanks giving is the core culture of our company!
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?
A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
