Product Description
Details Images

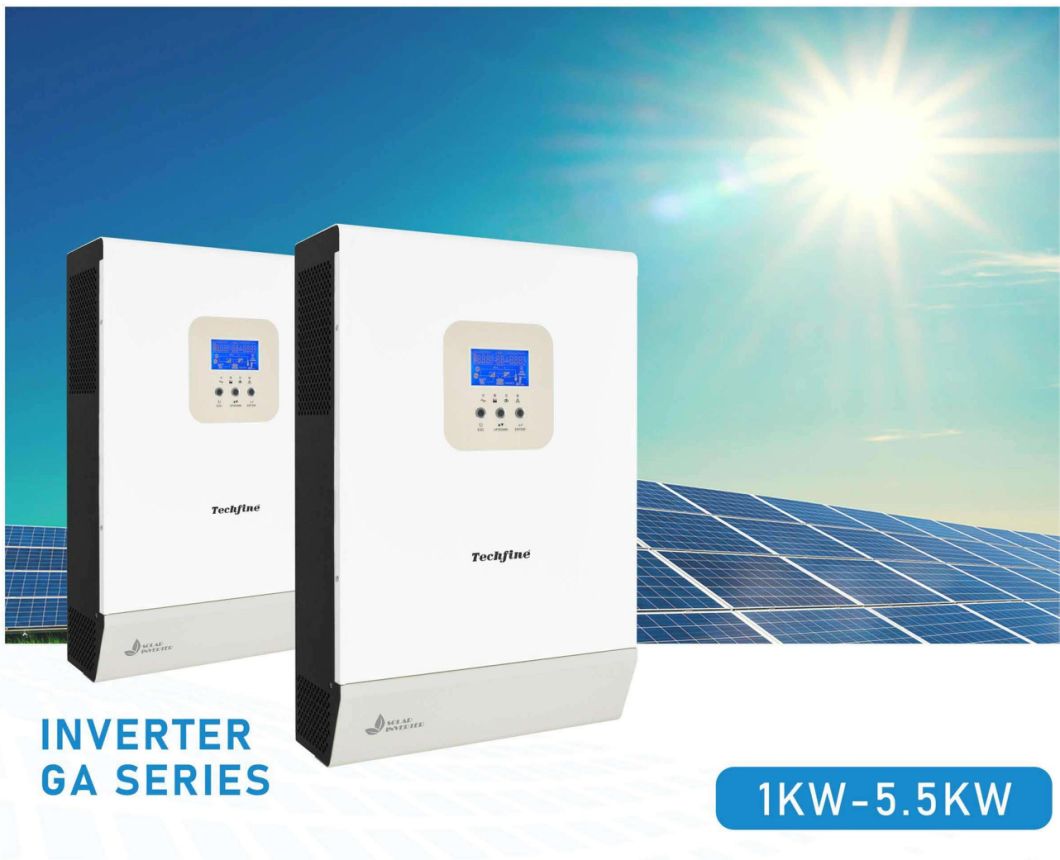

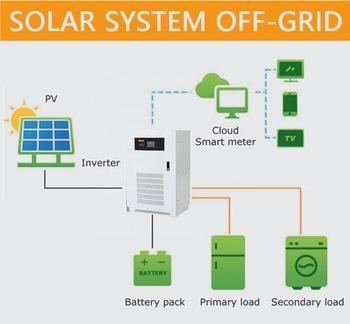

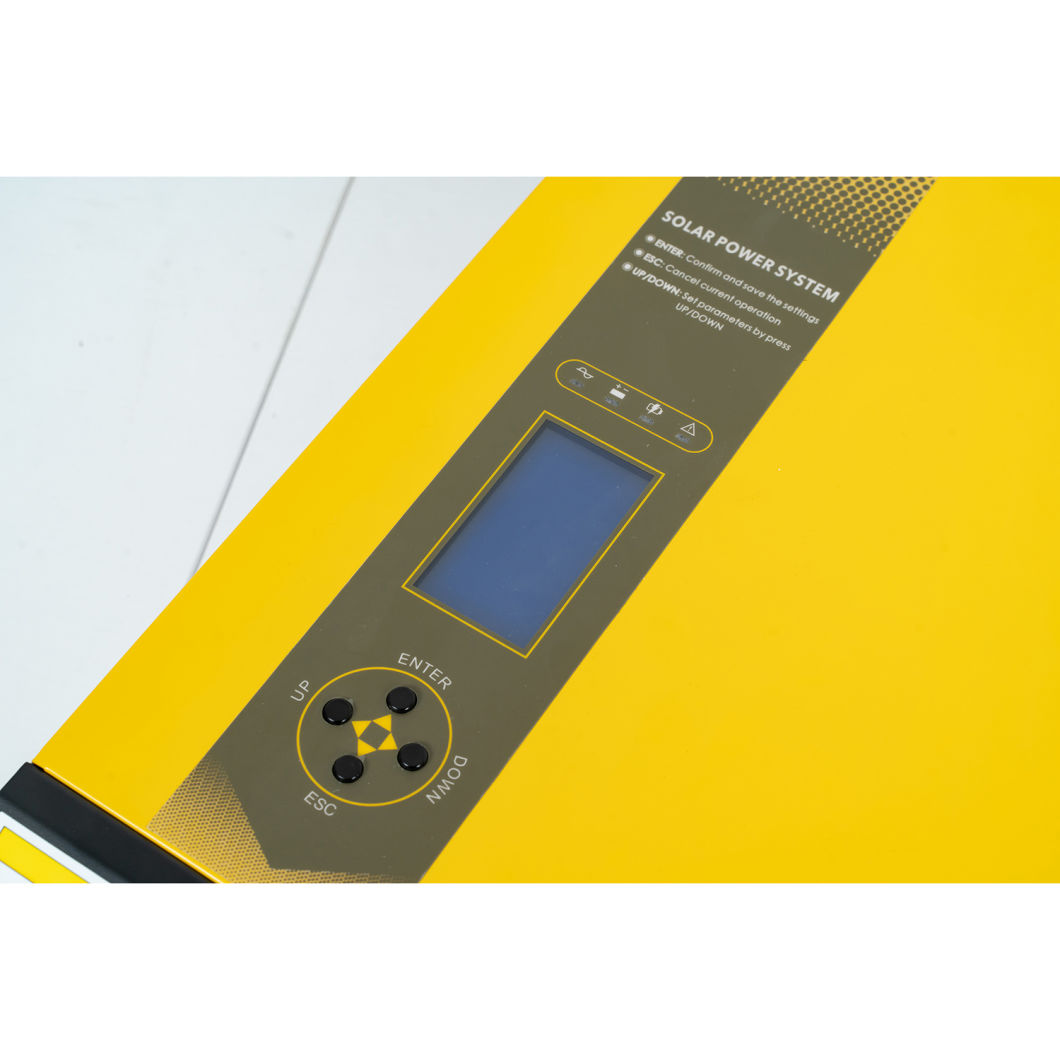

The electricity generated by the PV module is DC, and it cannot supply power to the AC load. The inverter needs to convert DC power into AC power and provide it to the load.
The inverter is used to convert DC energy (battery, storage bottle) into current (generally 220V, 50Hz sine wave). It consists of inverter bridge, control logic and filter circuit. Inverter is a DC to AC transformer, which is actually a voltage inversion process with converter. The converter converts the AC voltage of the power grid into a stable 12V DC output, while the inverter converts the 12V DC voltage output by the adapter into high frequency high-voltage AC; Pulse width modulation (PWM) technology, which is widely used, is also used in both parts. Its core part is a PWM integrated controller, the adapter uses UC3842, and the inverter uses tl5001 chip.

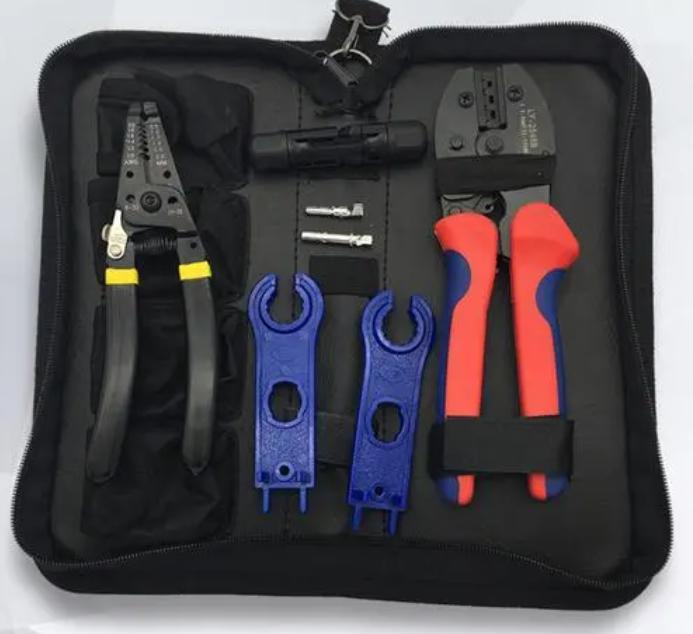

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper

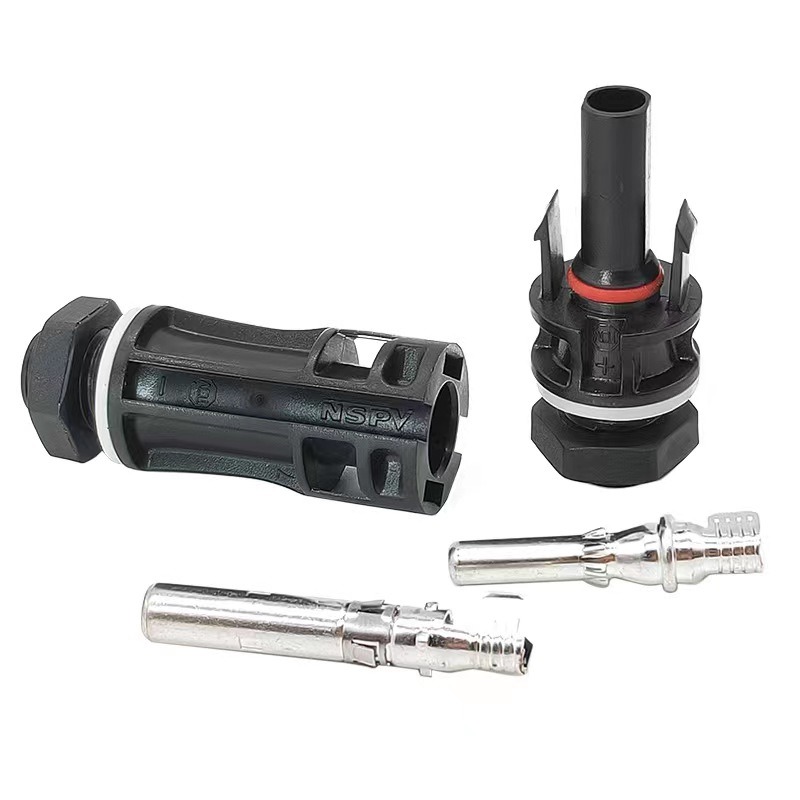

MC4 Connectors Assembly
Disassembly Tool
Product Parameters
| Item | Model | Description | Quantity |

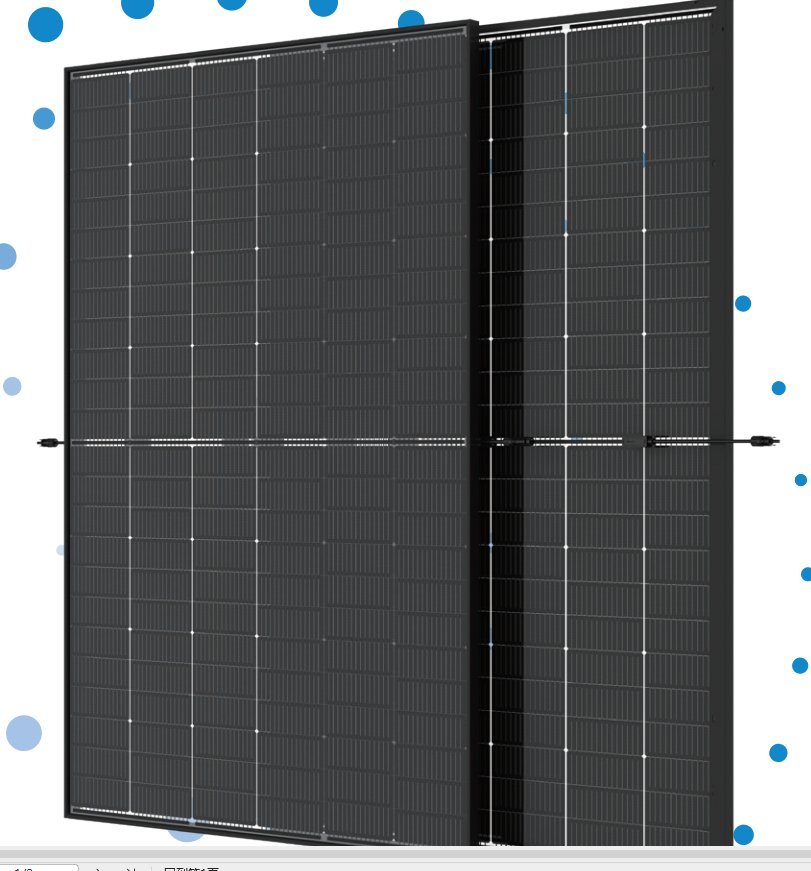

| 1 | Solar panel | Mono 440W solar panel | Design according to needs |
| 2 | IGBT solar inverter | Solar power inverter 12kw | |
| 3 | Solar charge controller | MPPT 30A-100A | |
| 4 | Battery | Lithium-lon battery | |

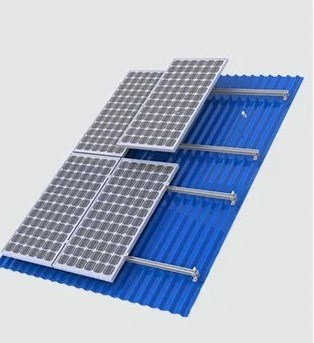

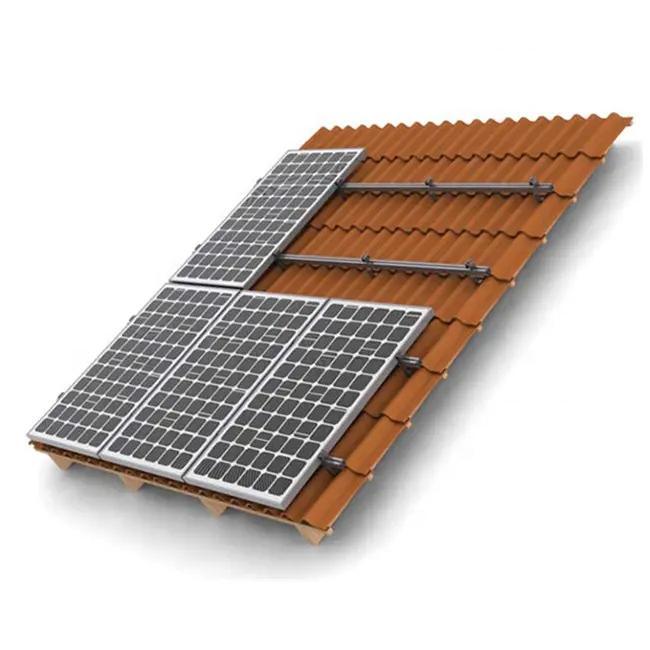

| 5 | Solar bracket | Flat ground and roof for optional:one set can mount 3PCS panels | |
| 6 | Solar cables | 4mm 2solar cables, 200mm 2battery cables, 16mm 2electric cable |

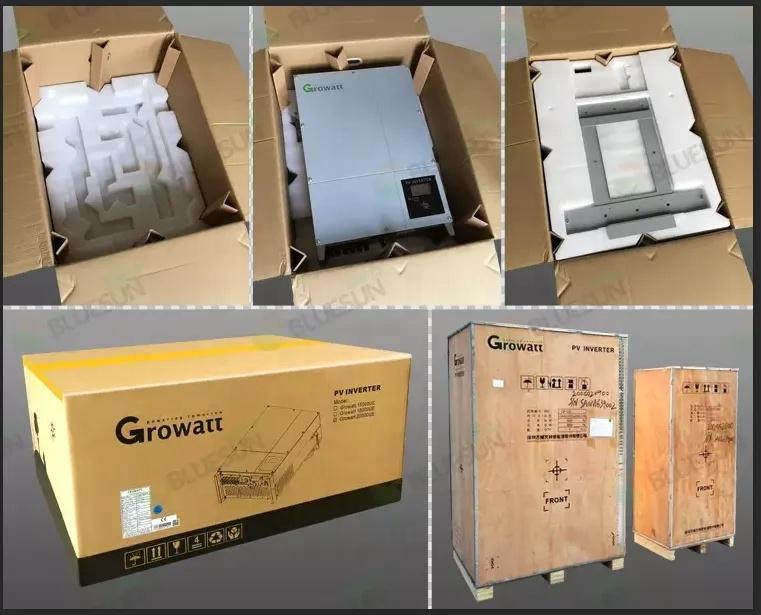

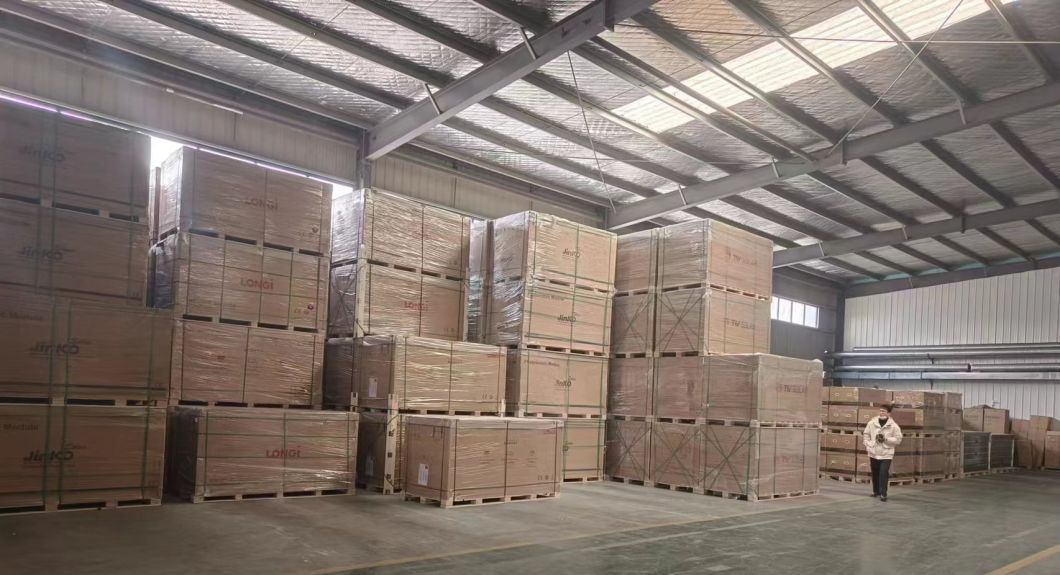

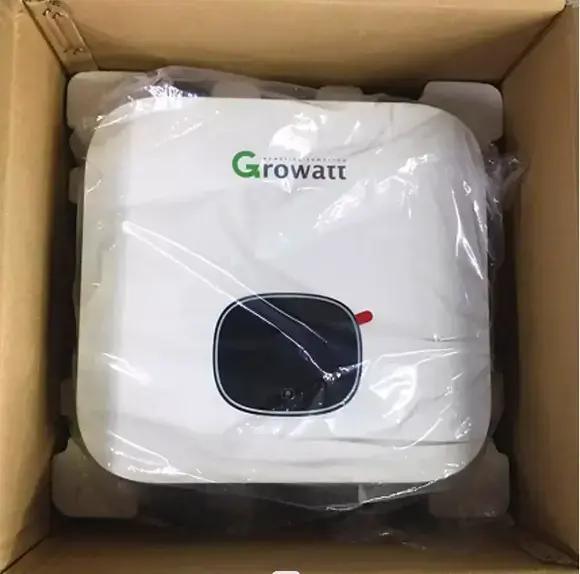

Packaging &Shipping
According to your products requirements , we will choose safe and economical transportation for you.
Payment method: 30% T/T in advance, 70% T/T before shipment
Installation Instructions
Company and factory

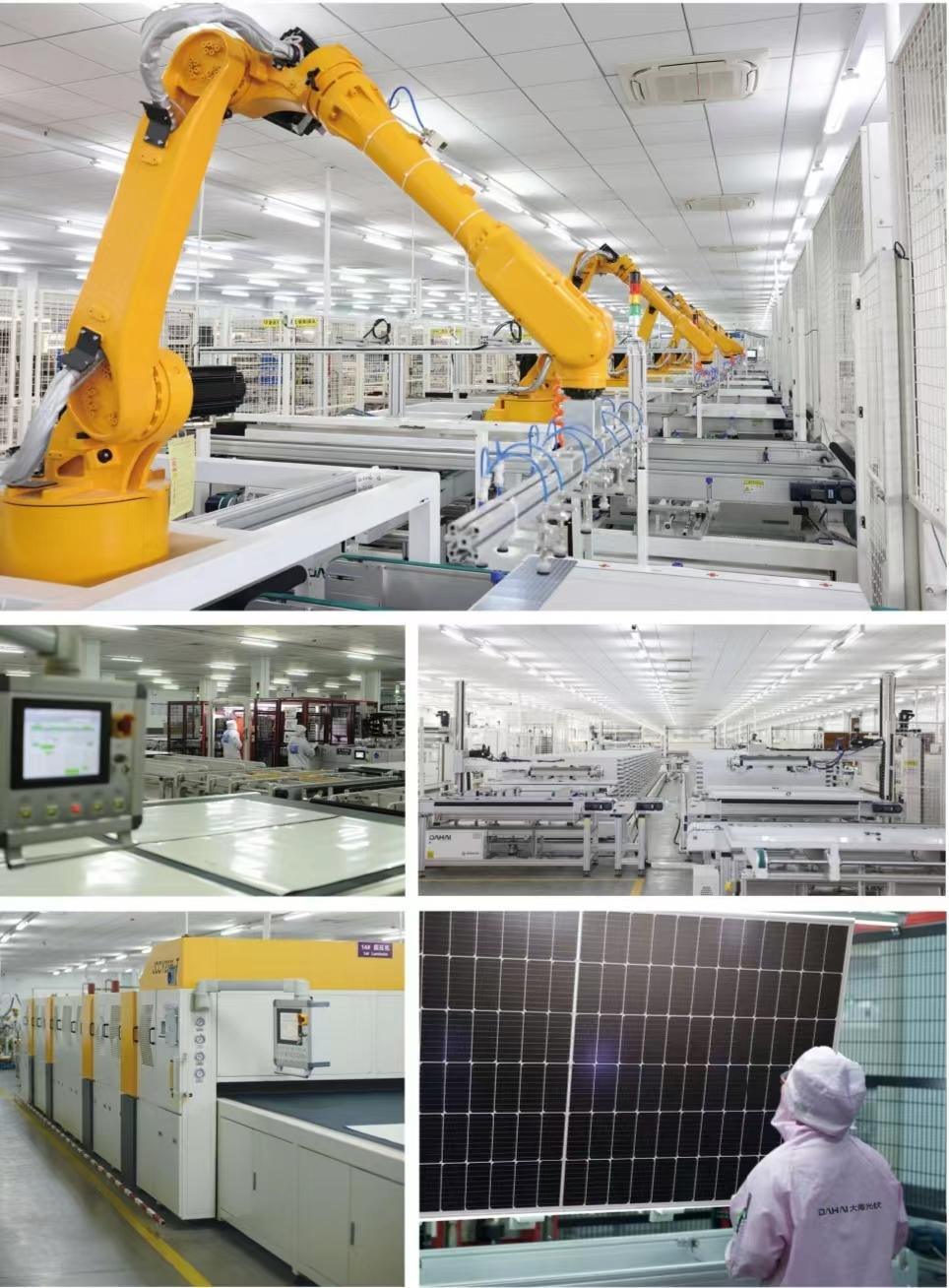

1.100% fully automatic production line,ensuring 100%in-line inspection on the production line. Effectively avoiding the risk of hidden cracks and inherent defects.improving efficiency, reducing manual errors,precision welding,and maintaining uniform product quality standards.
2.First-class photovoltaic testing center, up to 38 valid tests and experiments to ensure product quality.
3.High, medium and low current classification to improve system output performance.
4.Two EL tests before and after.12-focus EL to overcome depth-of-field differences,spatial resolution of 0.4-0.5mm high and low currents are tested separately, with zero tolerance for quality risks.
5.Long-term reliability testing.The PV testing center follows the standard of 3 times thousand conventional tests to guarantee the longer life cycle of the modules.
FAQ
1. Q: Why choose we?
A: 12-year product materials and workmanship warranty and 25-year linear power output warranty.
B: Anti-PID (Potential Induced Degradation) performance and rigorous EL testing.
C: Excellent low light power generation performance and fully automated component production line.
2. Q: Can I have my own customized product?
A: Yes, our customized requirements for logo, design, outer package are available.

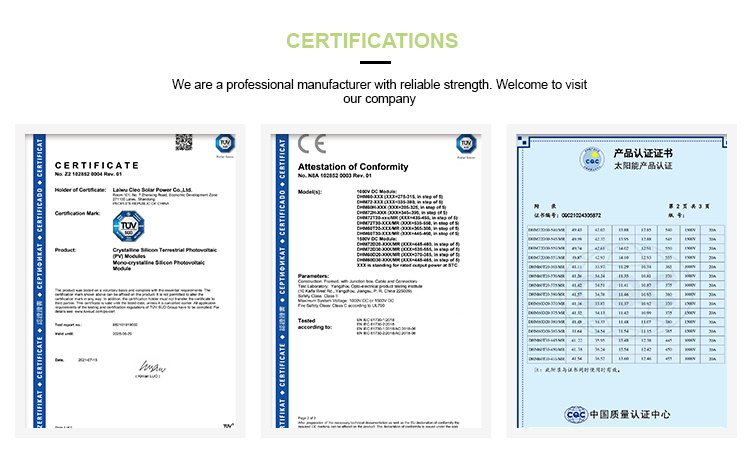

3. Q: What certificates do you have?
A: Our solar products have got ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe) and TUV (Technischen Uberwachungs Vereine).
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.Q: Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
