| Quantity: | |
|---|---|
Yes
25 Years
66PCS

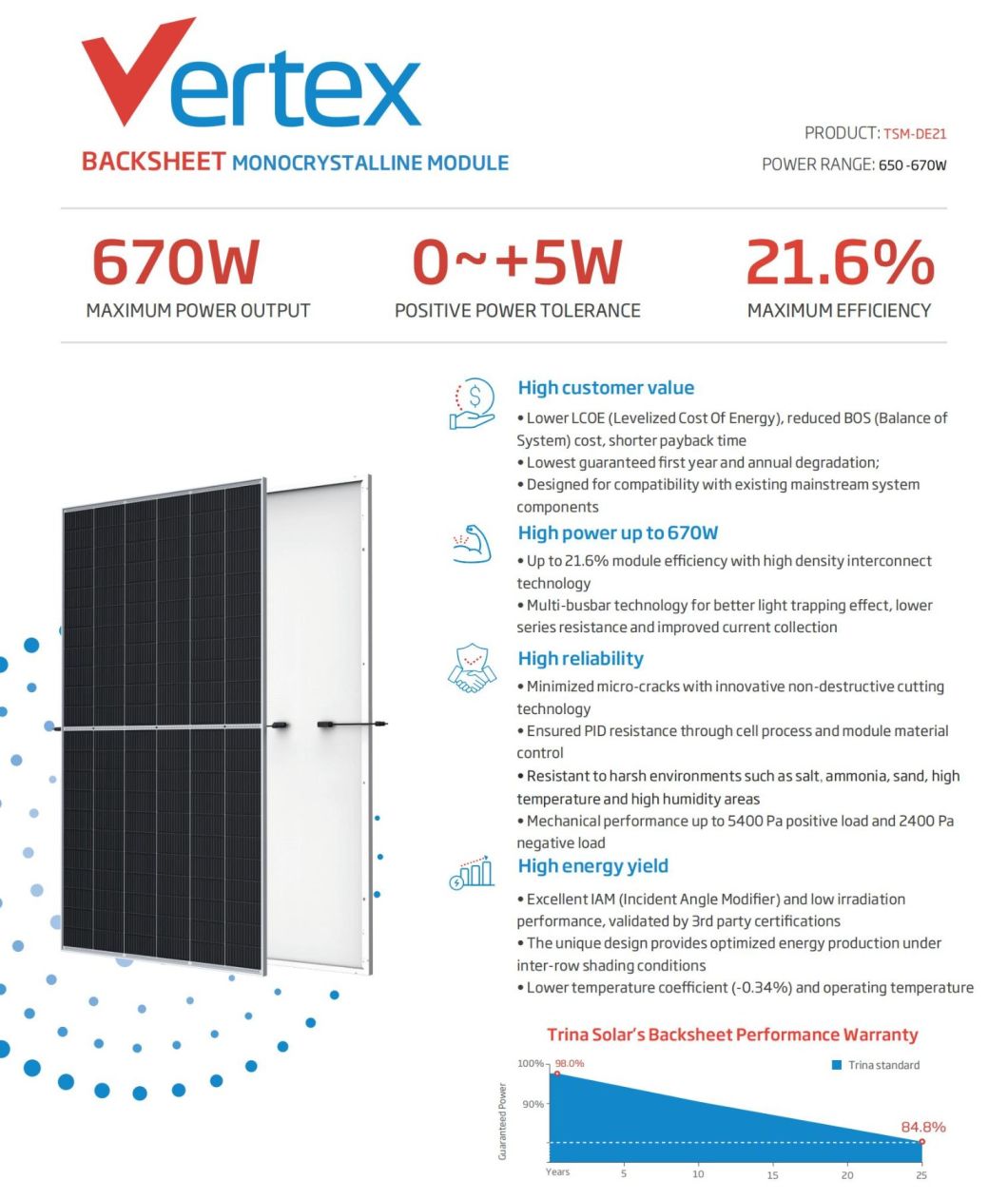

1. Adopting multi-main shed (MBB) half-sheet technology, the output power is away from 670W, and the conversion efficiency of the module reaches 21.57%.
2. Anti-PID performance. The PID (Potential Induced Degradation) resistance authority test(85°C/85% RH, 96 hours) under the harsh conditions of the industry minimizes the chance of degradation caused by the PID.
3. 12 main grid cell, with stronger current collection capacity and more stable power output.
4. Mechanical load. Certified for wind load of 2400 Pa at the back of the assembly and snow load of 5400 Pa at the front.
5. Excellent low light power generation performance. Excellent electrical performance output under low light conditions.
6. Low light attenuation. Rigorous ATLAS steady-state light testing ensures excellent photoluminescence performance for each batch of modules.
7. Rigorous EL testing. Spatial resolution is less than 0.5 mm,and more than two EL tests before and after to ensure zero defects inside the component.

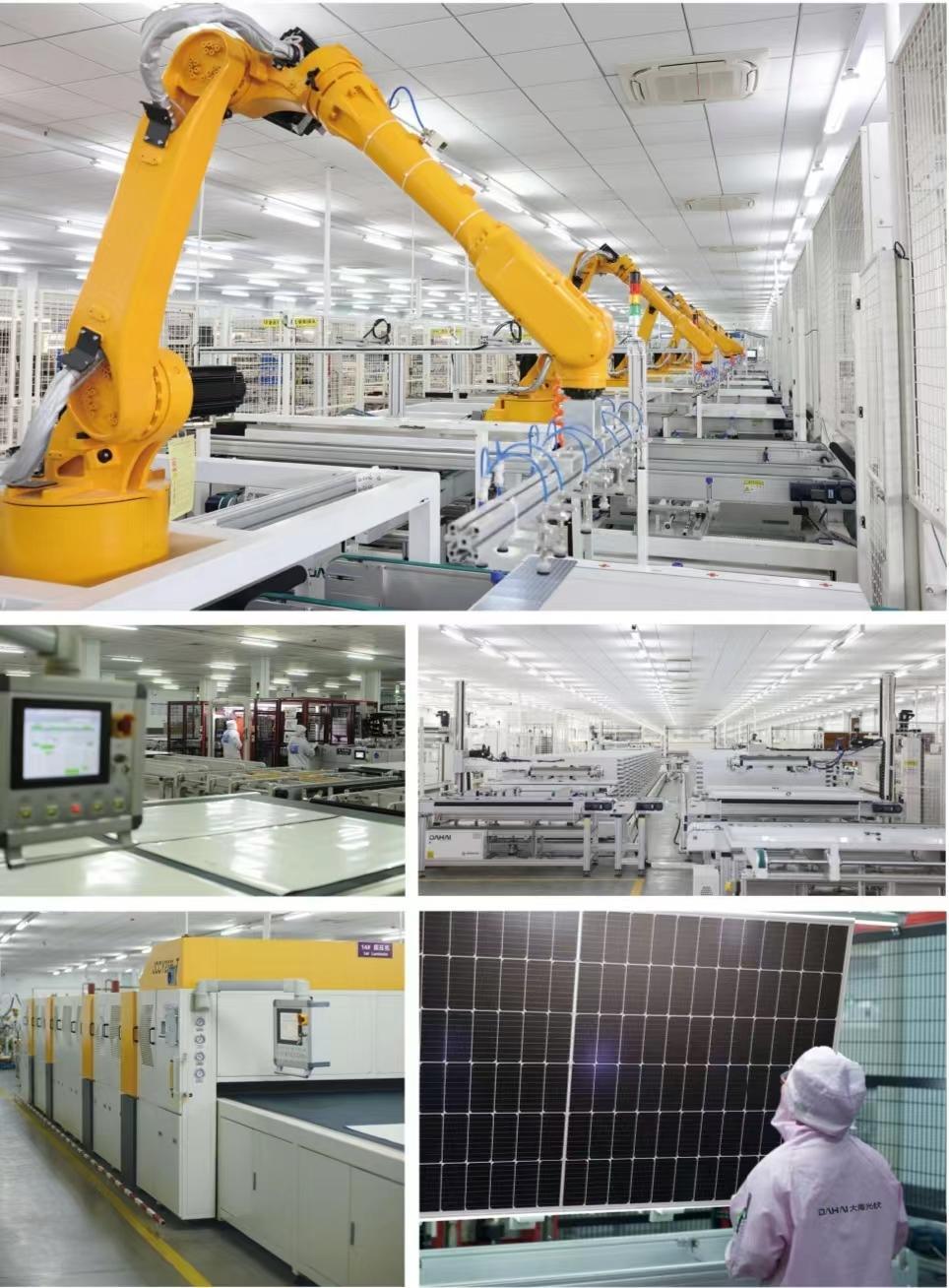

8. Fully automated component production line. Guarantee 100% online production 100% online inspection to ensure consistent product quality.
| Electrical performance parameters under STC | ||||||
| Model | DHM66T50-645/MR | DHM66T50-650/MR | DHM66T50-655/MR | DHM66T50-660/MR | DHM66T50-665/MR | DHM66T50-670/MR |
| Maximum power (W) | 645W | 650W | 655W | 660W | 665W | 670W |
| Voltage at maximum power point (VMP/V) | 37.48V | 37.68V | 37.89V | 38.11V | 38.31V | 38.52V |
| Current at maximum power point (IMP/A) | 17.21A | 17.25A | 17.29A | 17.32A | 17.36A | 17.39A |
| Open circuit voltage (VOC/V) | 45.12V | 45.32V | 45.53V | 45.73V | 45.95V | 46.14V |
| Short circuit current (ISC/A) | 18.24A | 18.29A | 18.33A | 18.39A | 18.44A | 18.50A |
| Component efficiency [%] | 20.76% | 20.92% | 21.09% | 21.25% | 21.41% | 21,57% |
| Power tolerance(W) | 0~+5 | |||||
| Standard test environment | Irradiance1000W/m², ambient temperature25ºC, spectrumAM1.5 | |||||
| Note:Due to continuous innovation,research and product upgrades, the parameters in this specification do not refer to a single component and can only be used for comparison between types . | ||||||
According to your products requirements , we will choose safe and economical transportation for you.
After a long time of export and sales experience, we are constantly innovating and improving.
After receiving the products, you will feel our sincerity.
According to your products requirements , we will choose safe and economical transportation for you.
Payment method: 30% T/T in advance, 70% T/T before shipment
The service is in place, the answer is accurate, and the delivery is on time. We provide the most appropriate solution for customers. We are proud to provide customized service solutions to meet the exact needs of customers.
Quality
Strictly control the quality and keep improving. Quality is the life of the enterprise, Customer's standard is our standard.
Proposal
We have rich online and offline industry experience to provide customers with the most appropriate and effective solar system recommendations.
Support
We have a professional design department to provide customers with installation drawings, installation plans and effective solutions.
1. Q: Why choose we?
A: 12-year product materials and workmanship warranty and 25-year linear power output warranty.
B: Anti-PID (Potential Induced Degradation) performance and rigorous EL testing.
C: Excellent low light power generation performance and fully automated component production line.
2. Q: Can I have my own customized product?
A: Yes, our customized requirements for logo, design, outer package are available.

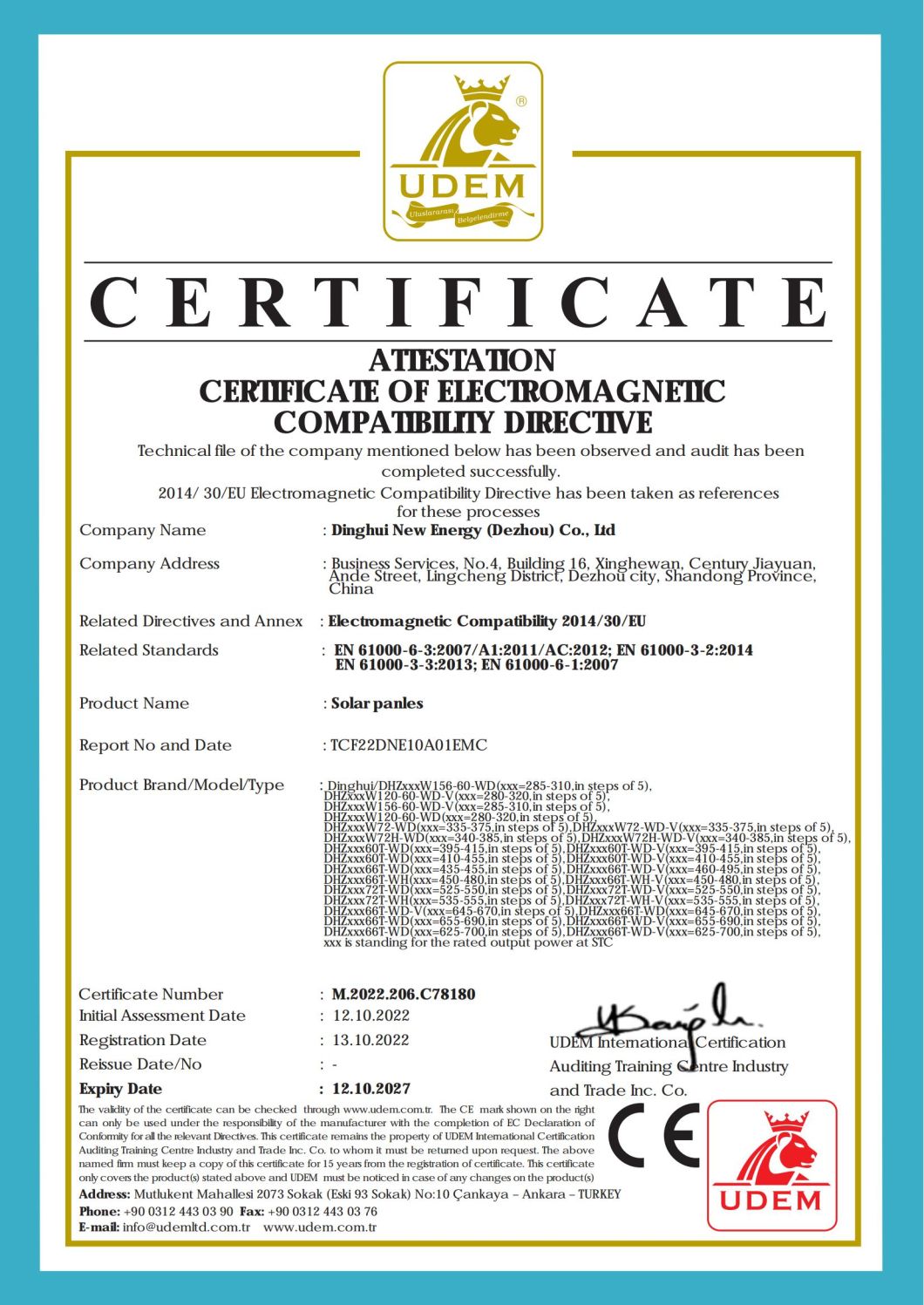

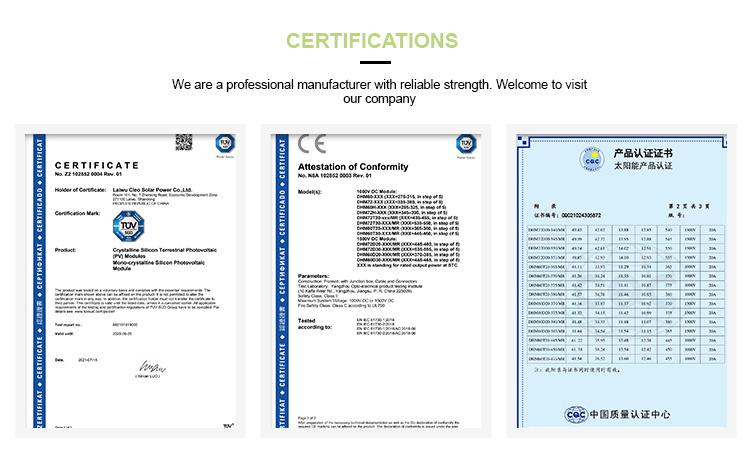

3. Q: What certificates do you have?
A: Our solar products have got ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe) and TUV (Technischen Uberwachungs Vereine).
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.Q: Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
