| Quantity: | |
|---|---|
Yes
30 Years
72pcs
| Electrical performance parameters under STC | ||||||
| Model | DHM72T30-525/MR | DHM72T30-530/MR | DHM72T30-535/MR | DHM72T30-540/MR | DHM72T30-545/MR | DHM72T30-550/MR |
| Maximum power (W) | 525W | 530W | 535W | 540W | 545W | 550W |
| Voltage at maximum power point (VMP/V) | 41.24V | 41.53V | 41.82V | 42.12V | 42.41V | 42.71V |
| Current at maximum power point (IMP/A) | 12.73A | 12.76A | 12.79A | 12.82A | 12.85A | 12.88A |
| Open circuit voltage (VOC/V) | 49.05V | 49.20V | 49.35V | 49.51V | 49.69V | 49.88V |
| Short circuit current (ISC/A) | 13.61A | 13.68A | 13.75A | 13.82A | 13.89A | 13.97A |
| Component efficiency [%] | 20.31% | 20.51% | 20.70% | 20.89% | 21.09% | 21.28% |
| Power tolerance(W) | 0~+5 | |||||
| Standard test environment | Irradiance1000W/m², ambient temperature25ºC, spectrumAM1.5 | |||||
| Note:Due to continuous innovation,research and product upgrades,the parameters in this specification do not refer to a single component and can only be used for comparison between types . | ||||||

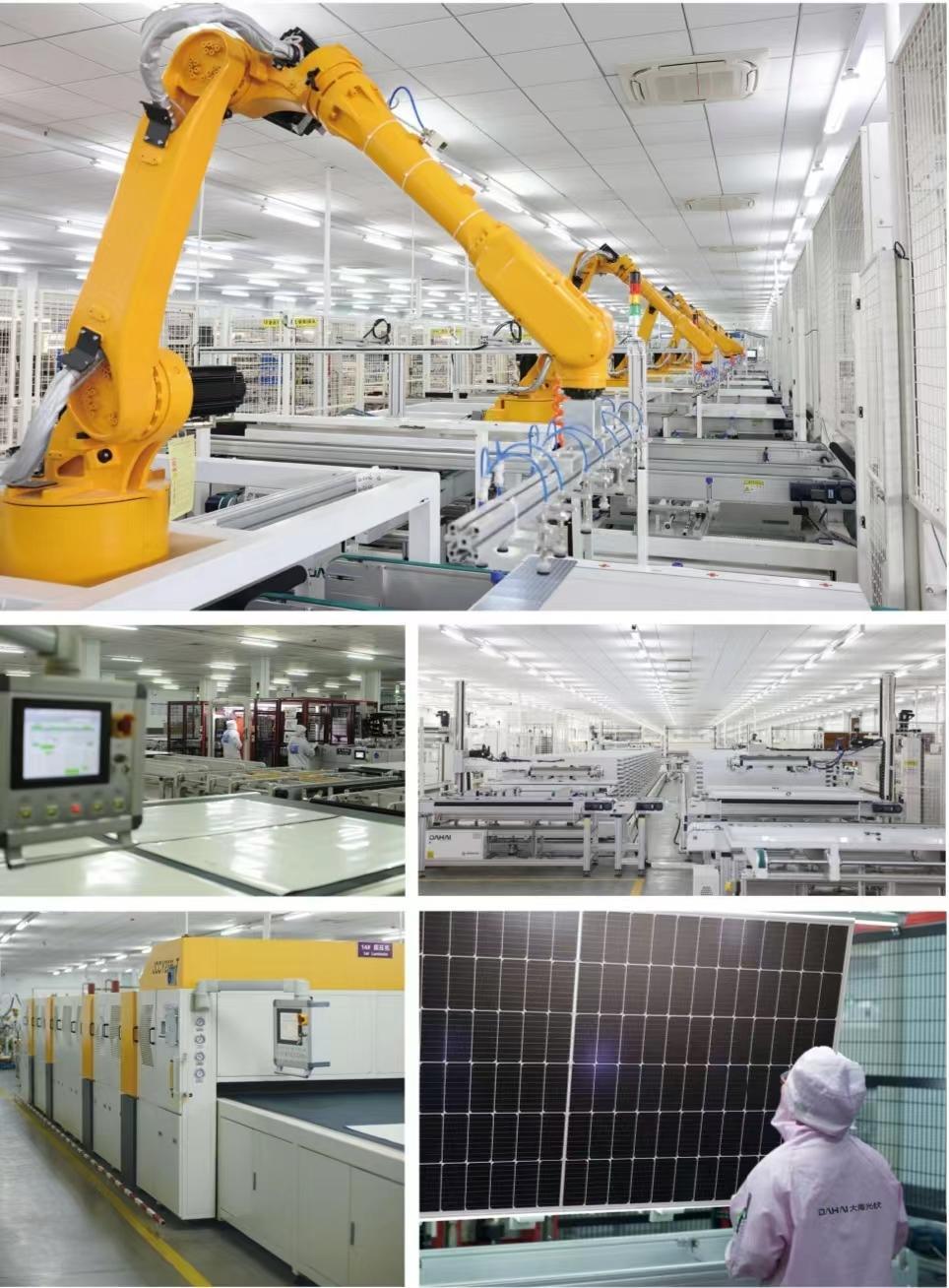

1.100% fully automatic production line,ensuring 100%in-line inspection on the production line. Effectively avoiding the risk of hidden cracks and inherent defects.improving efficiency, reducing manual errors,precision welding,and maintaining uniform product quality standards.
2.First-class photovoltaic testing center, up to 38 valid tests and experiments to ensure product quality.
3.High, medium and low current classification to improve system output performance.
4.Two EL tests before and after.12-focus EL to overcome depth-of-field differences,spatial resolution of 0.4-0.5mm high and low currents are tested separately, with zero tolerance for quality risks.
5.Long-term reliability testing.The PV testing center follows the standard of 3 times thousand conventional tests to guarantee the longer life cycle of the modules.
| Electrical performance parameters under STC | ||||||
| Model | DHM72T30-525/MR | DHM72T30-530/MR | DHM72T30-535/MR | DHM72T30-540/MR | DHM72T30-545/MR | DHM72T30-550/MR |
| Maximum power (W) | 525W | 530W | 535W | 540W | 545W | 550W |
| Voltage at maximum power point (VMP/V) | 41.24V | 41.53V | 41.82V | 42.12V | 42.41V | 42.71V |
| Current at maximum power point (IMP/A) | 12.73A | 12.76A | 12.79A | 12.82A | 12.85A | 12.88A |
| Open circuit voltage (VOC/V) | 49.05V | 49.20V | 49.35V | 49.51V | 49.69V | 49.88V |
| Short circuit current (ISC/A) | 13.61A | 13.68A | 13.75A | 13.82A | 13.89A | 13.97A |
| Component efficiency [%] | 20.31% | 20.51% | 20.70% | 20.89% | 21.09% | 21.28% |
| Power tolerance(W) | 0~+5 | |||||
| Standard test environment | Irradiance1000W/m², ambient temperature25ºC, spectrumAM1.5 | |||||
| Note:Due to continuous innovation,research and product upgrades,the parameters in this specification do not refer to a single component and can only be used for comparison between types . | ||||||
1.100% fully automatic production line,ensuring 100%in-line inspection on the production line. Effectively avoiding the risk of hidden cracks and inherent defects.improving efficiency, reducing manual errors,precision welding,and maintaining uniform product quality standards.
2.First-class photovoltaic testing center, up to 38 valid tests and experiments to ensure product quality.
3.High, medium and low current classification to improve system output performance.
4.Two EL tests before and after.12-focus EL to overcome depth-of-field differences,spatial resolution of 0.4-0.5mm high and low currents are tested separately, with zero tolerance for quality risks.
5.Long-term reliability testing.The PV testing center follows the standard of 3 times thousand conventional tests to guarantee the longer life cycle of the modules.
