| Quantity: | |
|---|---|
Yes
25 Years
108cells

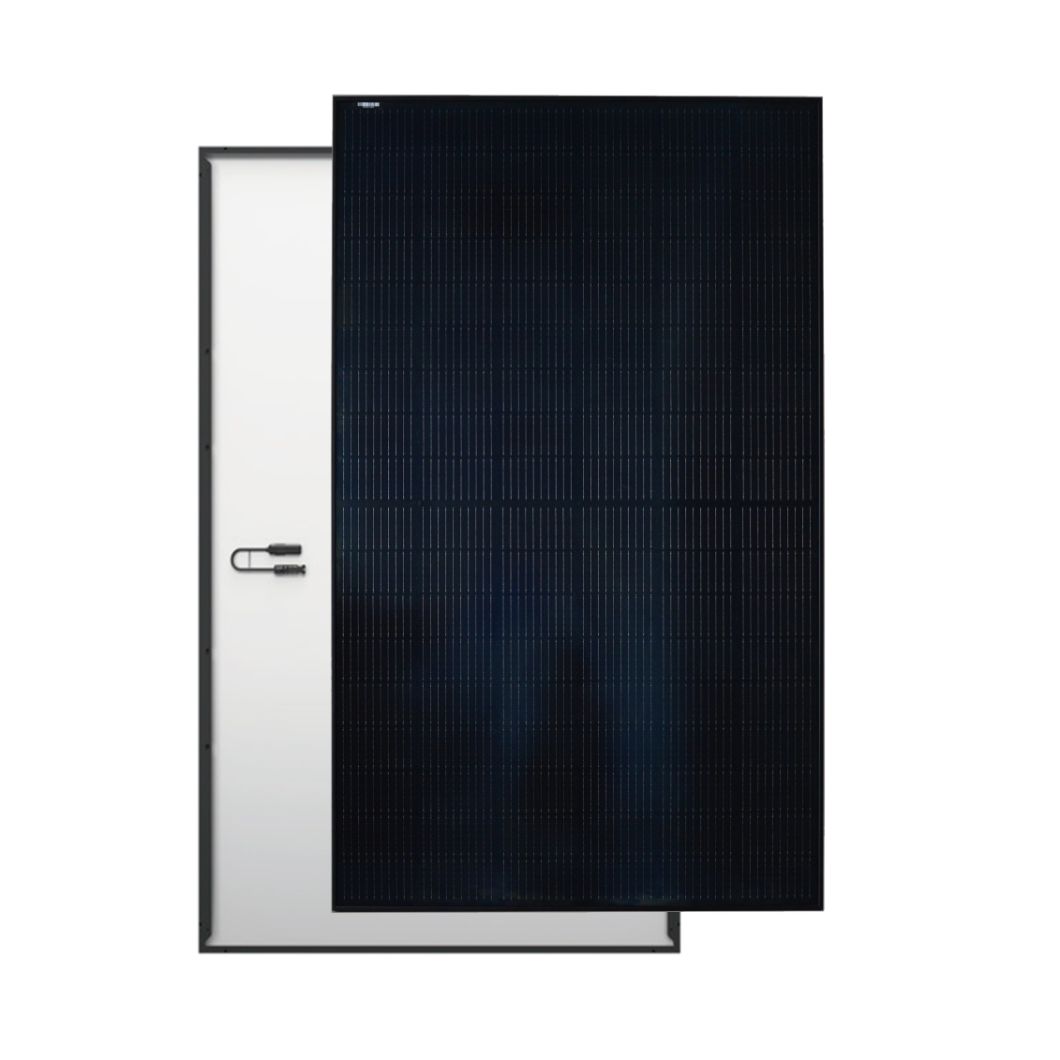

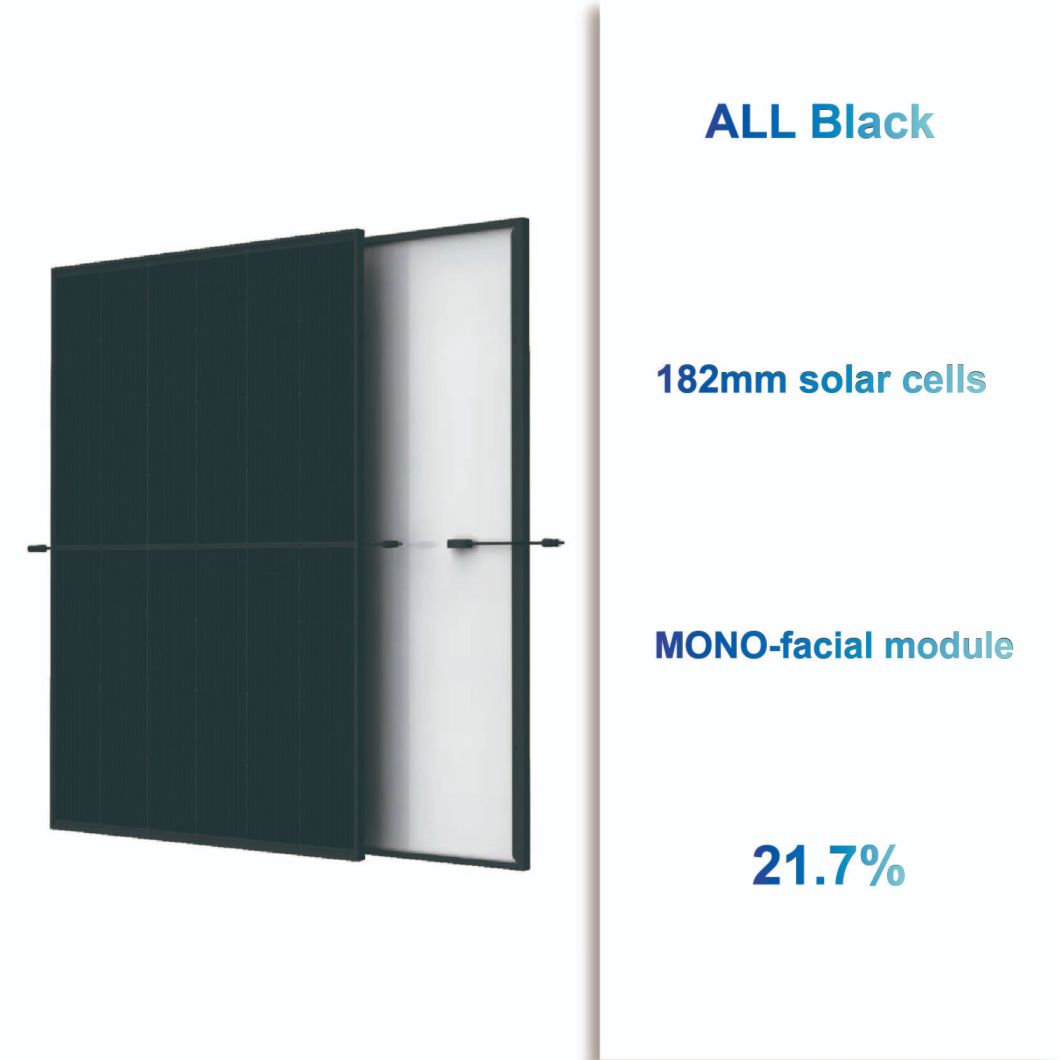

Product Description
1. Adopting multi-main shed (MBB) half-sheet technology, the output power is away from 535W, and the conversion efficiency of the module reaches 21.5%.
2. Anti-PID performance. The PID (Potential Induced Degradation) resistance authority test(85°C/85% RH, 96 hours) under the harsh conditions of the industry minimizes the chance of degradation caused by the PID.
3. 11 main grid cell, with stronger current collection capacity and more stable power output.
4. Mechanical load. Certified for wind load of 2400 Pa at the back of the assembly and snow load of 5400 Pa at the front.
5. Excellent low light power generation performance. Excellent electrical performance output under low light conditions.
6. Low light attenuation. Rigorous ATLAS steady-state light testing ensures excellent photoluminescence performance for each batch of modules.
7. Rigorous EL testing. Spatial resolution is less than 0.5 mm,and more than two EL tests before and after to ensure zero defects inside the component.

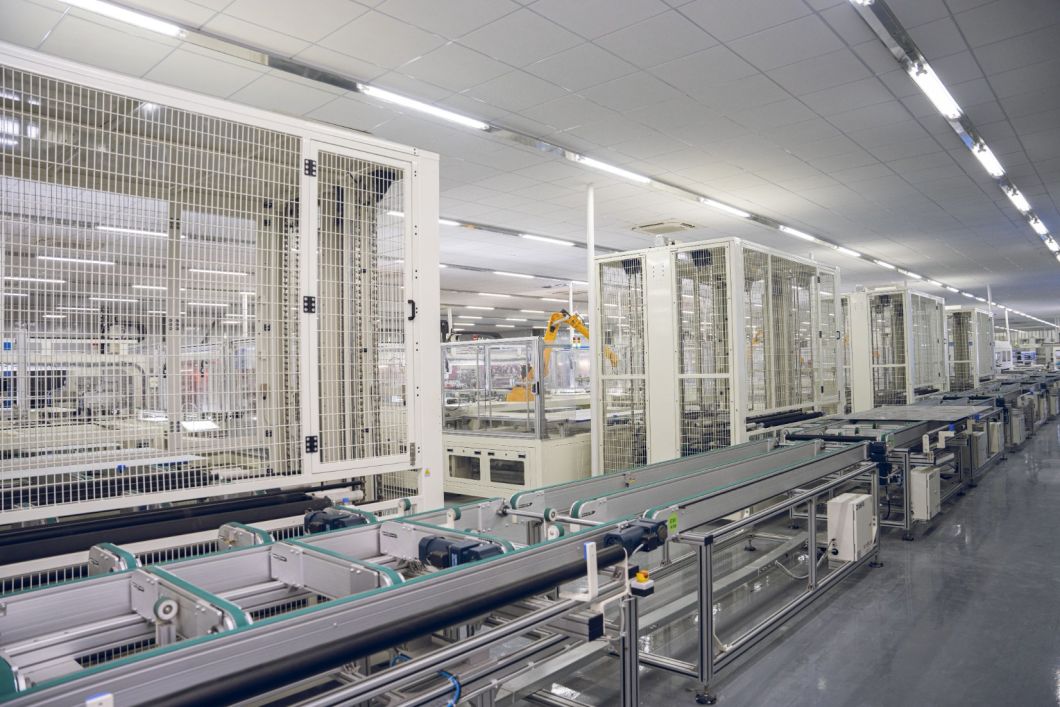

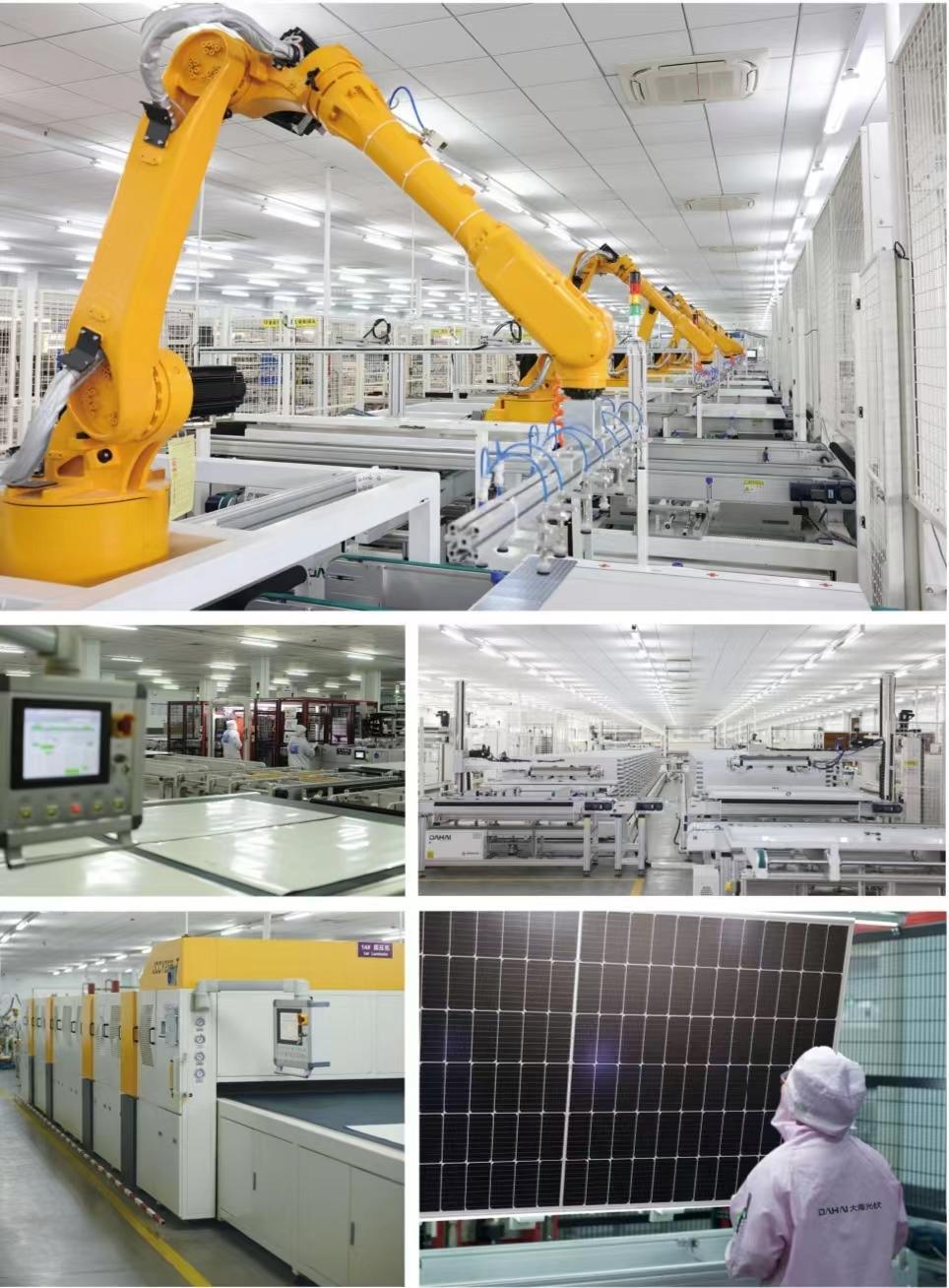

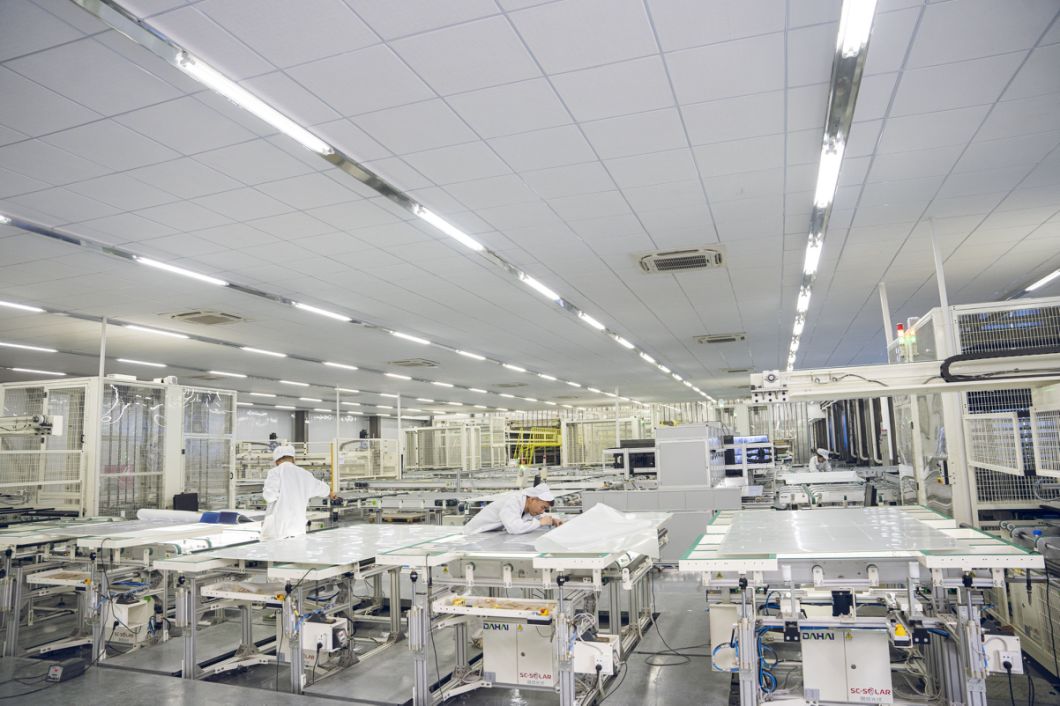

8. Fully automated component production line. Guarantee 100% online production 100% online inspection to ensure consistent product quality.

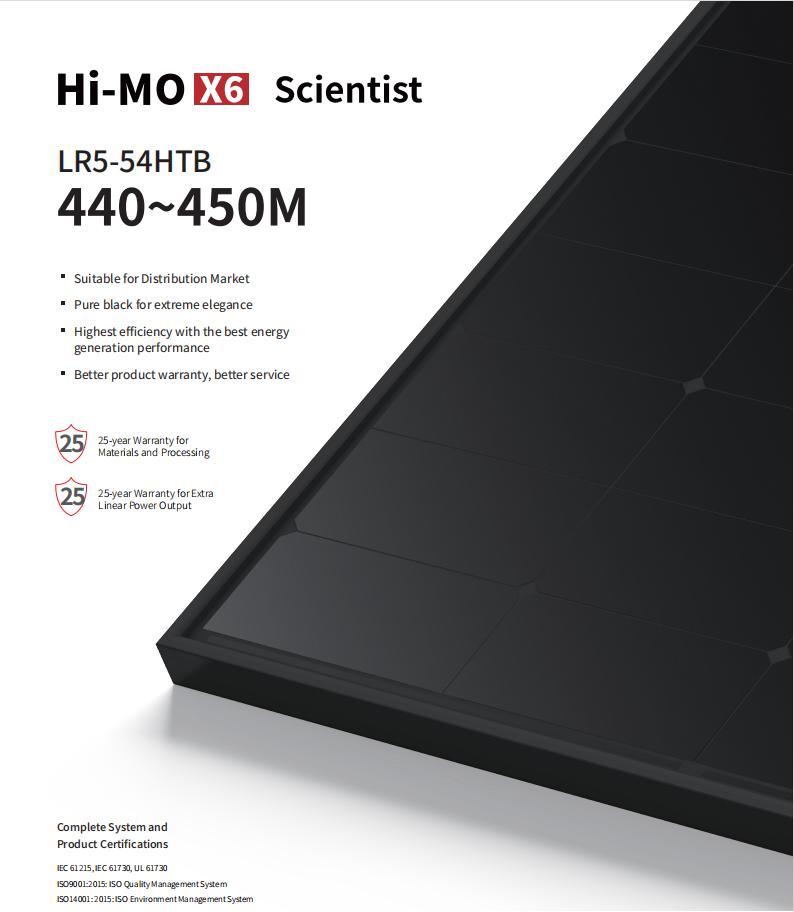

Product Parameters
| Module Type | LR5-54HTB-440M | LR5-54HTB-445M | LR5-54HTB-450M | |||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT |
| Pm(W) | 440 | 329 | 445 | 333 | 450 | 337 |
| Imp(A) | 13.12 | 10.75 | 13.19 | 10.82 | 13.27 | 10.88 |
| Vmp(V) | 33.56 | 30.62 | 33.76 | 30.81 | 33.96 | 30.99 |
| Isc(A) | 14.15 | 11.43 | 14.23 | 11.49 | 14.31 | 11.55 |
| Voc(V) | 39.83 | 37.40 | 40.03 | 37.58 | 40.23 | 37.77 |
| Module Efficiency | 22.5% | 22.8% | 23.0% | |||
| Pm Tolerance 0/+3% Bifaciality:70%± 10% STC:AM1.5 1000W/nf 25°C NOCT:AM1.5 800W/nf 20°C 1m/s Measurement uncertainty:±3% | ||||||
| Mechanical Data | |
| Cell Type | P type Mono-crystalline |
| Cell Arrangement | 108(6x18) |
| Module Dimensions | 1722x1134x30mm |
| Weight | 20.8kg |
| Module Structure | Glass/Encapsulant/Glass |
| Glass Thickness | 2.0mm+2.0mm |
| PV module classification | Class II |
| Junction Box Rating | IP67/IP68 |
| Cables | 4mm2/1100mm or Customized Length |
| Connector Type | MC4/MC4 Compatible(IOOOV) EVO2/EVO2 Compatible(1500V) |

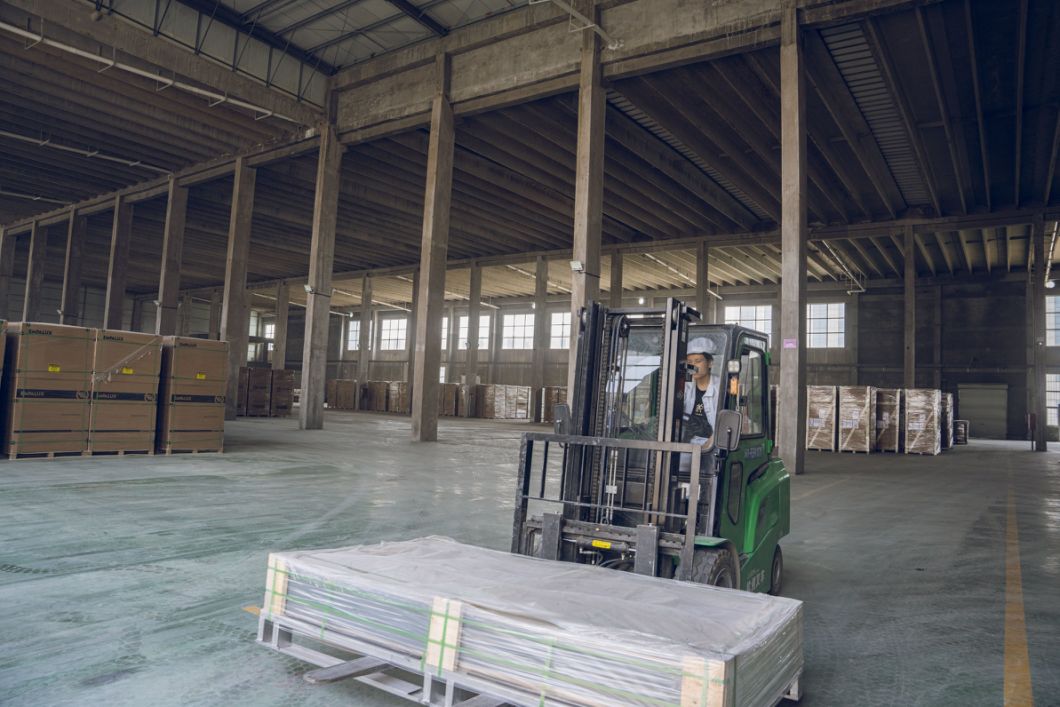

Packaging &Shipping
FAQ
1. Q: Why choose we?
A: 12-year product materials and workmanship warranty and 25-year linear power output warranty.
B: Anti-PID (Potential Induced Degradation) performance and rigorous EL testing.
C: Excellent low light power generation performance and fully automated component production line.
2. Q: Can I have my own customized product?
A: Yes, our customized requirements for logo, design, outer package are available.
3. Q: What certificates do you have?
A: Our solar products have got ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe) and TUV (Technischen Uberwachungs Vereine).
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q: Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
