1608kg
10 Years
5 Years

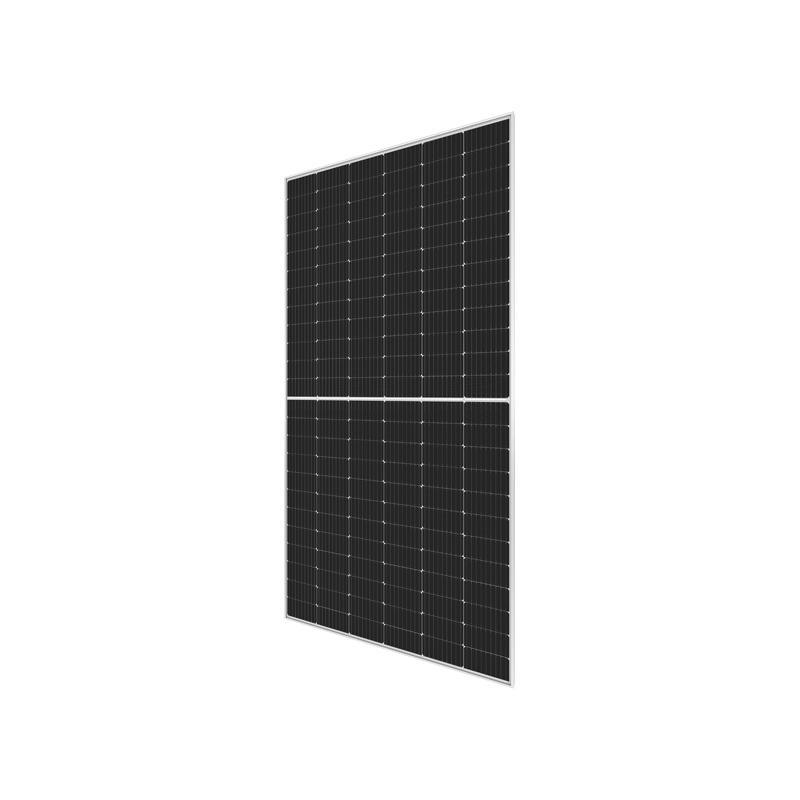

| Battery type | Component weight | Component size | Number of batteries | Cable cross-sectional area | Junction Box | Connector | Packaging information |

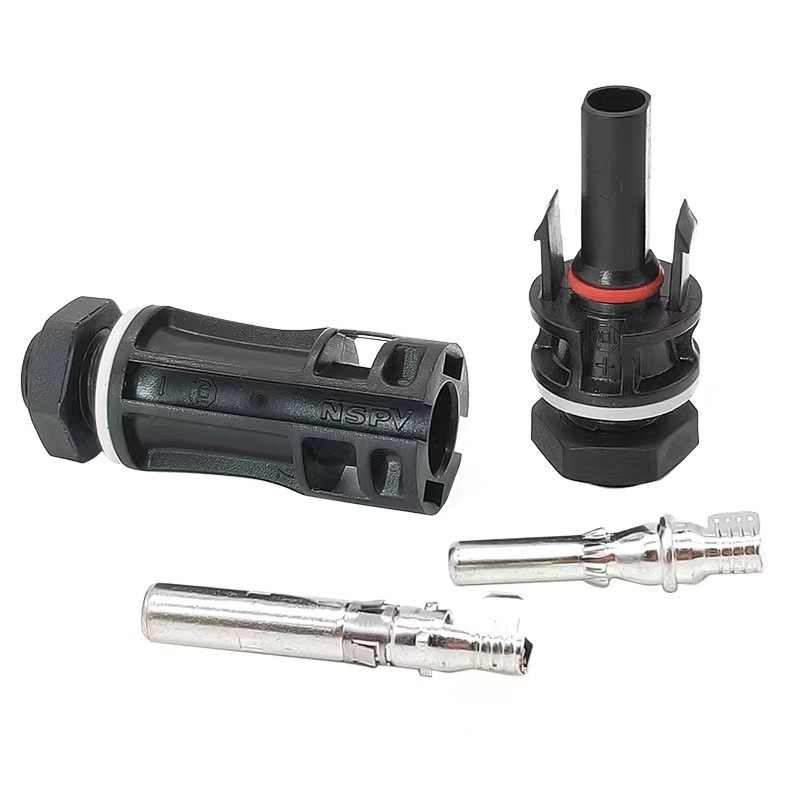

| monocrystalline | 27.5kg | 2279*1134*35mm | 144(6*24) | 4mm² | IP68, 3 diodes | MC4 compatible connector | 31 pieces per pallet |

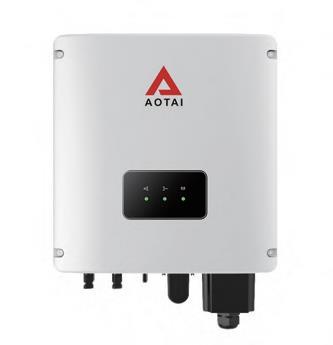

| On-grid inverter | ||||||
| Input | 5KTLD | 10KTLD | 15KTLC | 20KTLC | ||
| Maximum DC input power | 6500W | 11500W | 19500W | 26000W | ||
| Maximum DC input voltage | 550V | 580V | 1100V | |||
| Maximum DC input current | 15/15A | 27/20A | 30/18A | 30/30A | ||
| MPPT voltage range | 80-550V | 180-1000V | 180-1000V | |||
| Recommended MPPT working voltage | 360V | 650V | ||||
| Number of MPPT | 2 | |||||
| Maximum input string number of each MPPT | 1 | One string for the first route/two string for the second route/two string for the first route/one string for the second route | One string for the first route/ one string for the second route | 2 | ||
| output | ||||||
| Rated output power | 5000W | 10000W | 15000W | 20000W | ||
| Maximum output power | 5.5kVA | 10kVA | 16.5kVA | 22kVA | ||
| Maximum output current | 25A | 46A | 25A | 32A | ||
| Rated grid voltage | 230V | 400V | ||||
| Grid voltage range | 160-270Vac(Adjustable) | 310-480Vac | ||||
| Rated grid frequency | 50Hz/60Hz | |||||
| Power grid frequency range | 45~55Hz/55-65Hz | |||||
| THD | <2%(Rated power) | |||||
| power factor | >0.99(Rated power)/Adjustable range:0.8leading~0.8lagging | |||||
| DC component | <0.5%(Rated power) | |||||
| system | ||||||
| Maximum efficiency | 98.10% | 98.10% | 98.70% | |||
| European efficiency | 97.50% | 97.60% | 98.20% | |||
| Humidity range | 0-100%, non-condensing | |||||
| Cooling mode | Natural cooling | Intelligent speed regulating air cooling | ||||
| Operating temperature range | -25~+60ºC | |||||
| Night loss | <1W | |||||
| Allowable altitude | 4000m | |||||
| display | LED instructions/LCD display (Optional) | |||||
| communication | RS485/GPRS/Wifi (Optional) | |||||
| Mechanics | ||||||
| size | 347x368x167mm | 377x430x220mm | 427x510x204mm | |||
| weight | 7kg | 18kg | ||||
| Degree of protection | IP66 | |||||
| Standard | ||||||
| On-Grid standard | NB/T 32004-2018; IEC61727 | |||||
| Safety standards | NB/T 32004-2018; IEC62109-1/2 | |||||
| Electromagnetic compatibility | EC61000-6-2/4 | |||||
1. Q: Why do I choose your company?
A: We hold the idea that we provide reliable products and valuable services to help our customers have a growing and profitable business. Thanks giving is the core culture of our company!
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?
A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
