17180kg
10 Years
5 Years

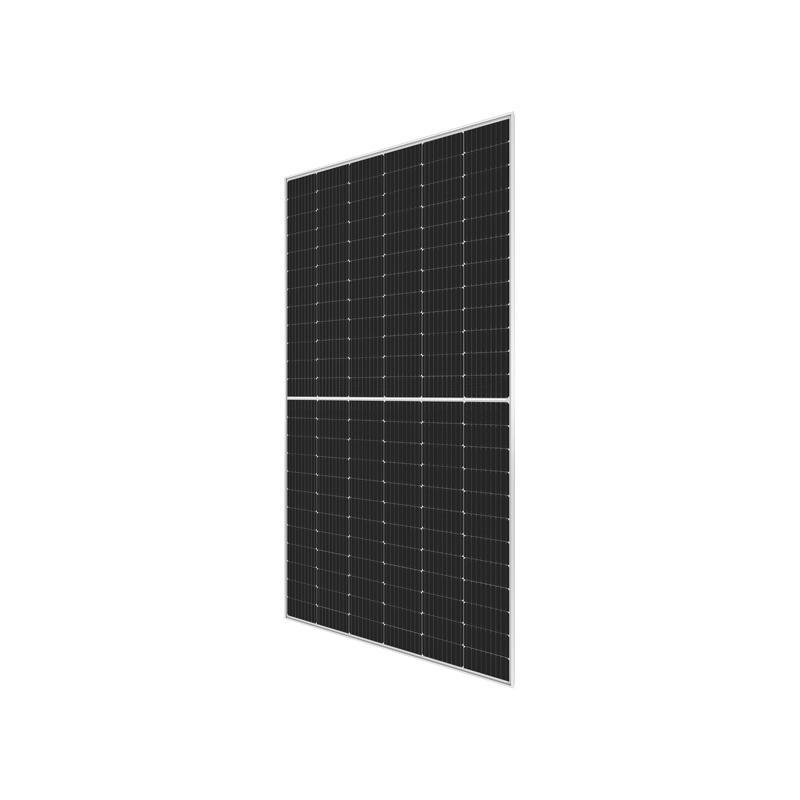

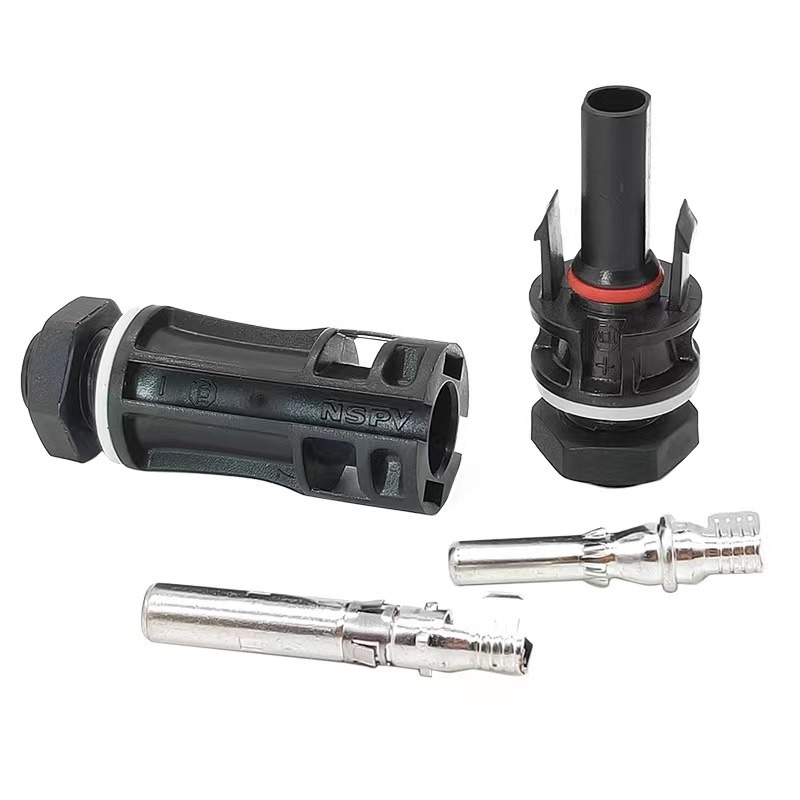

| Battery type | Component weight | Component size | Number of batteries | Cable cross-sectional area | Junction Box | Connector | Packaging information |
| monocrystalline | 27.5kg | 2279*1134*35mm | 144(6*24) | 4mm² | IP68, 3 diodes | MC4 compatible connector | 31 pieces per pallet |

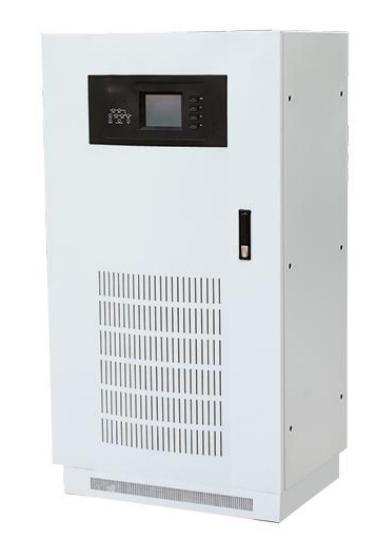

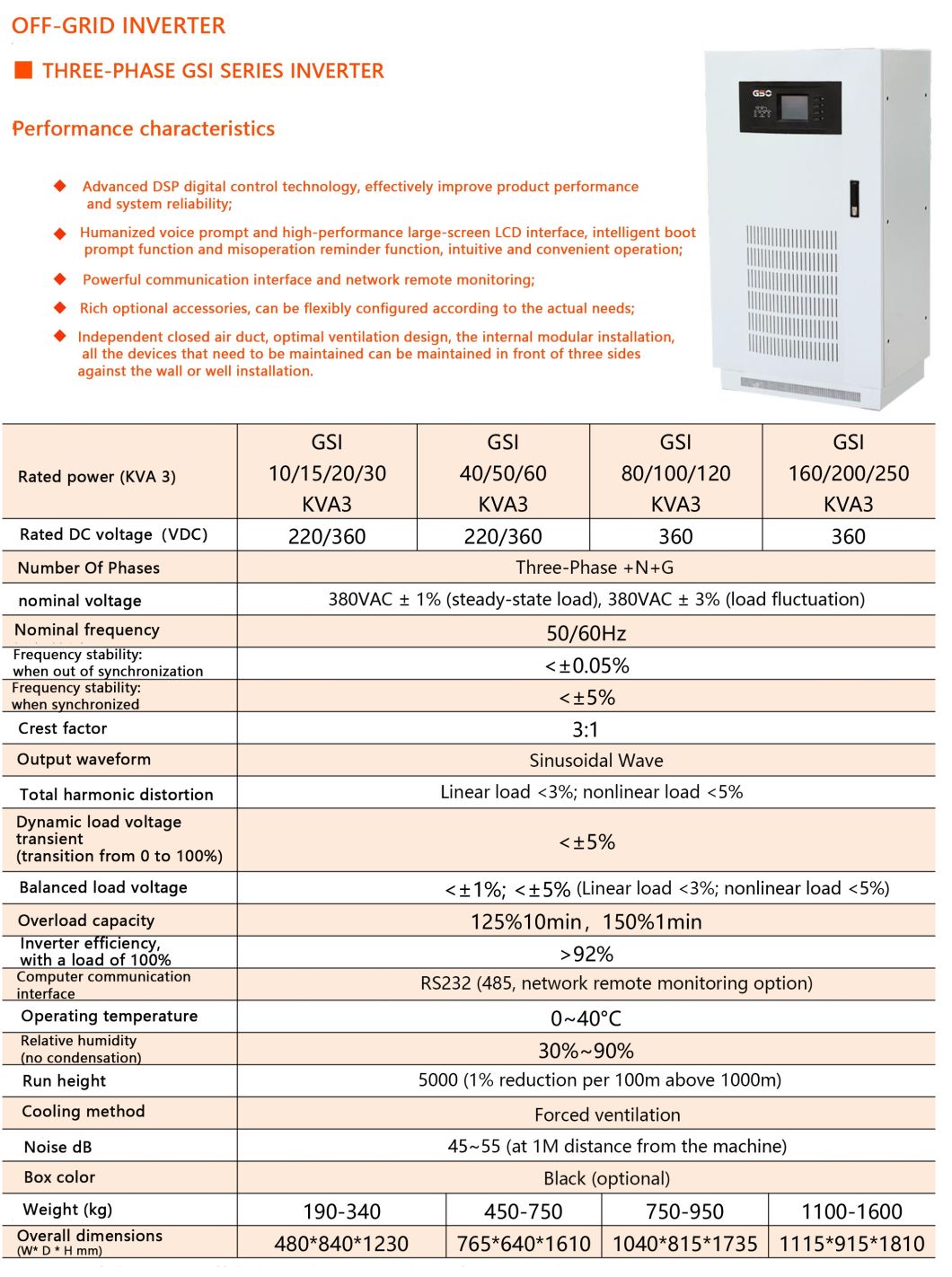

| Model | GSI220 |
| Output Power | 6/10/15/20/25/30 |
| Battery | |
| Rated Voltage | 220 |
| Undervoltage protectian point | 194.4 |
| Undervoltage recovery point | 234 |
| Overvaltage protection point | 279 |
| Overvoltage recovery point | 270 |
| AC Output | |
| Output Waveform | L+N(Pure Sine Wave) |
| Output Voltage | 220VAC±1%;110VAC±1% |
| Output Frequency | 50/60±1% |
| Output Waveform Distortion Rate | ≤2% |
| Inversion Efficiency | ≥85% |
| Current Peak Coefficient | 3:1 |
| Overload Capacity | 105-110%,600S ;110-125%,60S ;>125%,1S |
| Display | LCD+LED |
| Communication | RS485/GPRS (Optional) |
| Environment | |
| Protection Grade | IP20 |
| Altitude(m) | ≤5000 |
| Relative Humidity | <95%, Non Condensing |
| Environment Temperature | -10~+50 |
| Noise(1 m) | ≤50dB |
| Dimensions and Weight | |
| W*D*H (mm) | 750*450*1100 |
| Weight (kg) | 75-90/110-130 |
1. Q: Why do I choose your company?
A: We hold the idea that we provide reliable products and valuable services to help our customers have a growing and profitable business. Thanks giving is the core culture of our company!
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?

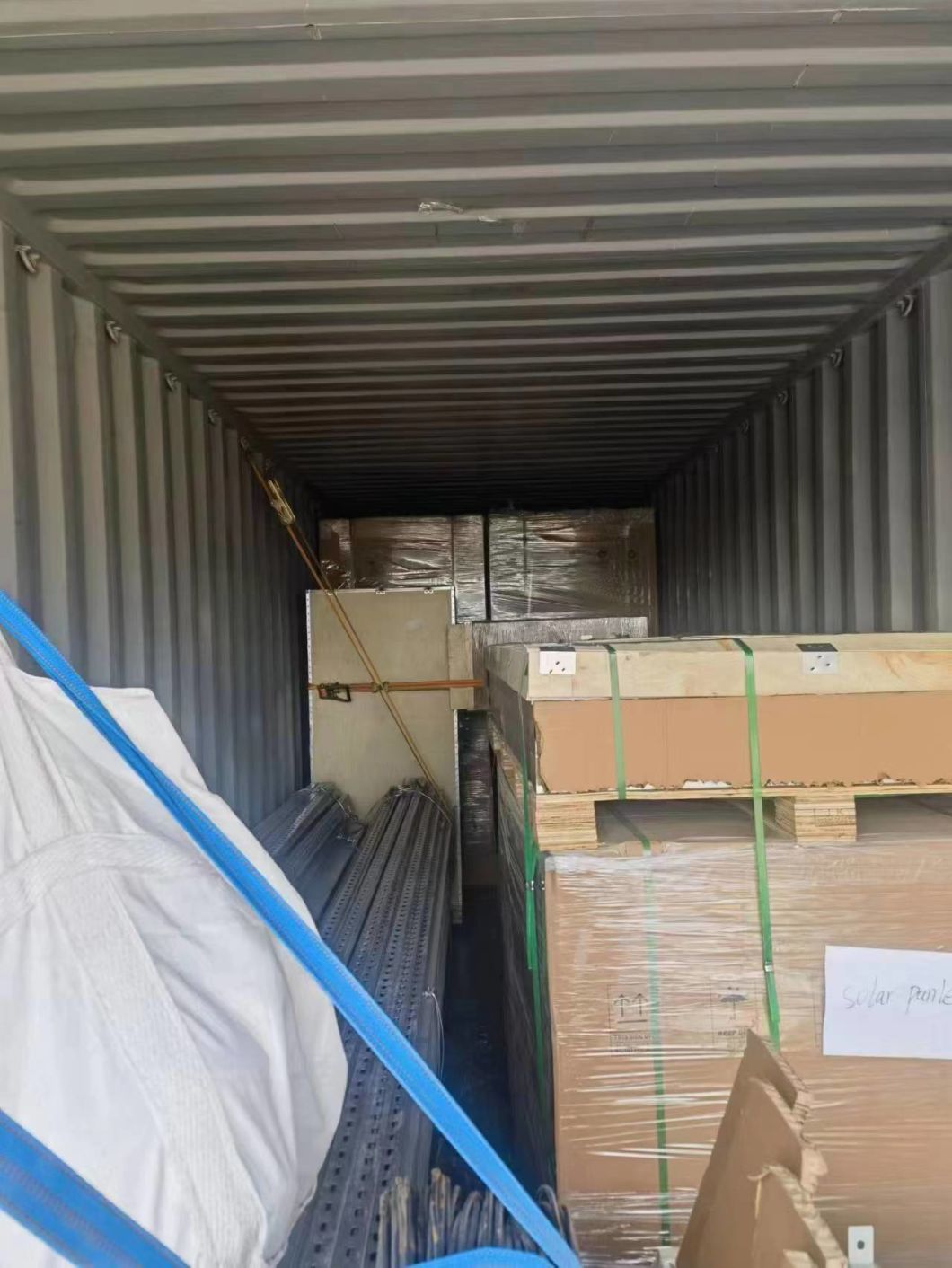

A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
