| Quantity: | |
|---|---|
Yes
25 Years
66PCS

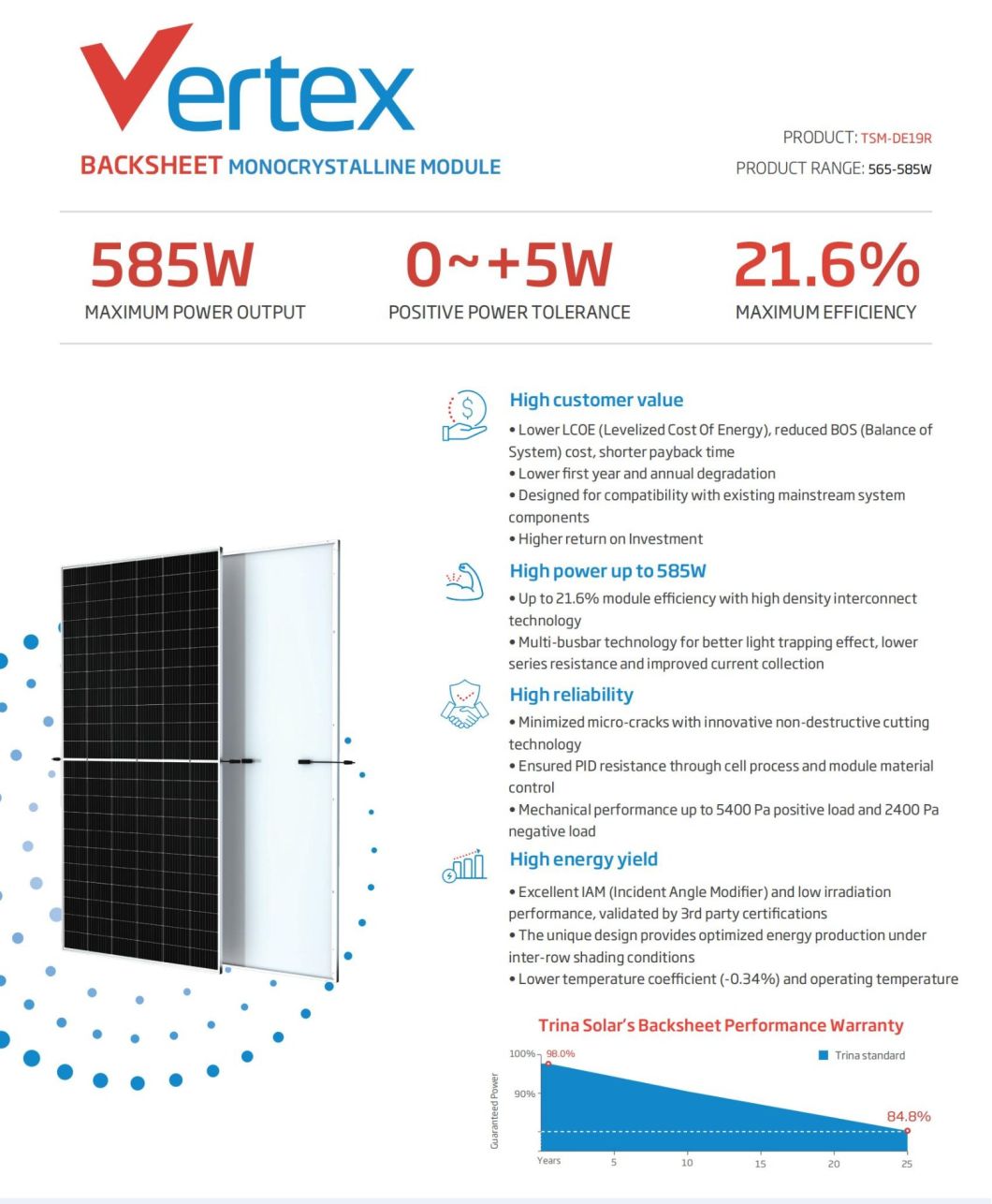

1. Adopting multi-main shed (MBB) half-sheet technology, the output power is away from 585W, and the conversion efficiency of the module reaches 21.6%.
2. Anti-PID performance. The PID (Potential Induced Degradation) resistance authority test(85°C/85% RH, 96 hours) under the harsh conditions of the industry minimizes the chance of degradation caused by the PID.
3.10/11 main grid cells. All the cells are upgraded to 10/11 main grid cells,which have stronger current collection capability and more stable power.
4. Mechanical load. Certified for wind load of 2400 Pa at the back of the assembly and snow load of 5400 Pa at the front.
5. Excellent low light power generation performance. Excellent electrical performance output under low light conditions.
6.Low light attenuation. Rigorous ATLAS steady-state light testing ensures excellent photoluminescence performance for each batch of modules.
7. Rigorous EL testing. Spatial resolution is less than 0.5mm,and more than two EL tests before and after to ensure zero defects inside the component.

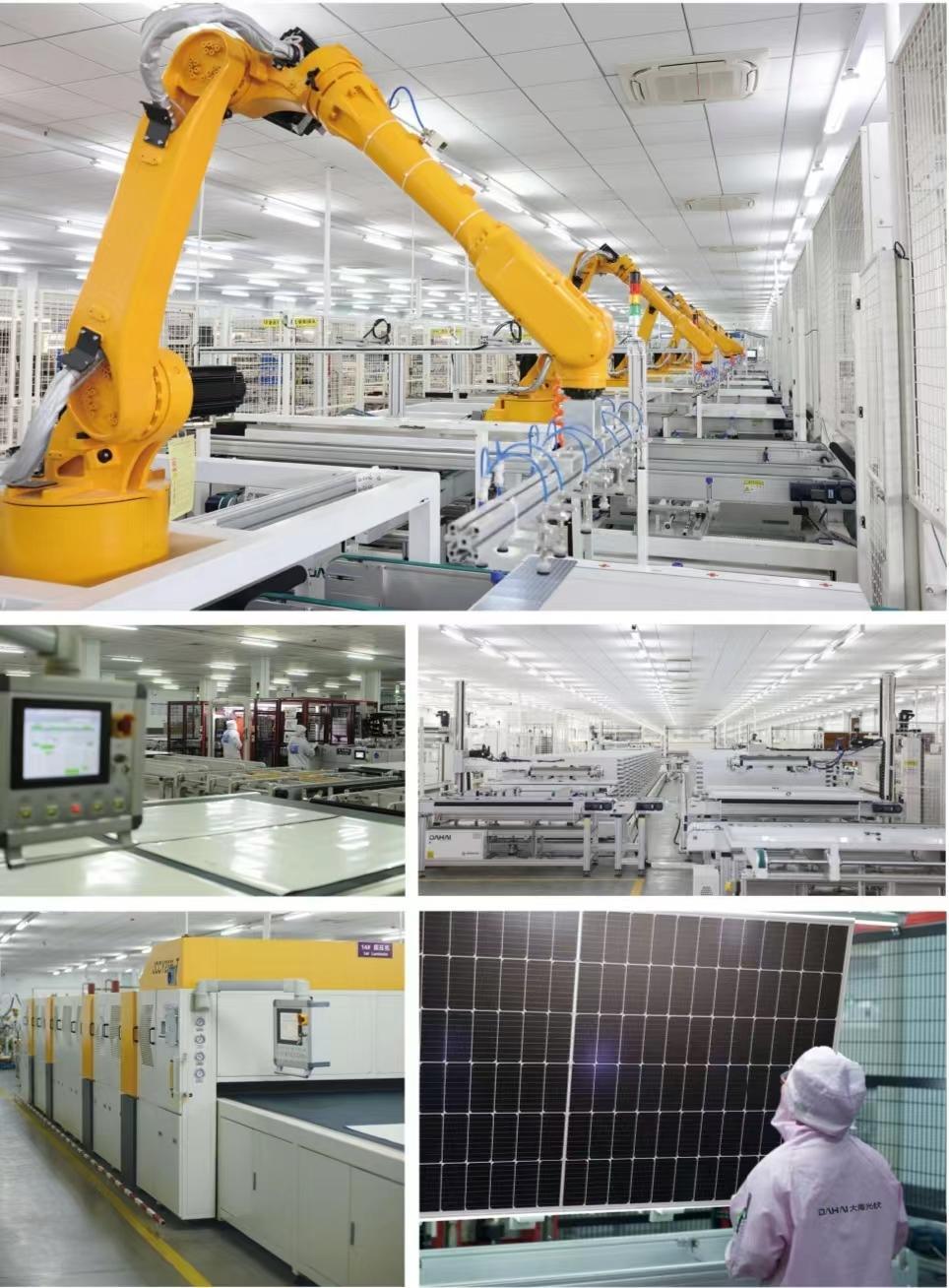

8. Fully automated component production line. Guarantee 100% online production 100% online inspection to ensure consistent product quality.
| Electrical performance parameters under STC | ||||||
| Model | DHM72T30-525/MR | DHM72T30-530/MR | DHM72T30-535/MR | DHM72T30-540/MR | DHM72T30-545/MR | DHM72T30-550/MR |
| Maximum power (W) | 525W | 530W | 535W | 540W | 545W | 550W |
| Voltage at maximum power point (VMP/V) | 41.24V | 41.53V | 41.82V | 42.12V | 42.41V | 42.71V |
| Current at maximum power point (IMP/A) | 12.73A | 12.76A | 12.79A | 12.82A | 12.85A | 12.88A |
| Open circuit voltage (VOC/V) | 49.05V | 49.20V | 49.35V | 49.51V | 49.69V | 49.88V |
| Short circuit current (ISC/A) | 13.61A | 13.68A | 13.75A | 13.82A | 13.89A | 13.97A |
| Component efficiency [%] | 20.31% | 20.51% | 20.70% | 20.89% | 21.09% | 21.28% |
| Power tolerance(W) | 0~+5 | |||||
| Standard test environment | Irradiance1000W/m², ambient temperature25ºC, spectrumAM1.5 | |||||
| Note:Due to continuous innovation,research and product upgrades,the parameters in this specification do not refer to a single component and can only be used for comparison between types . | ||||||
1. Q: Why choose we?
A: 12-year product materials and workmanship warranty and 25-year linear power output warranty.
B: Anti-PID (Potential Induced Degradation) performance and rigorous EL testing.
C: Excellent low light power generation performance and fully automated component production line.
2. Q: Can I have my own customized product?
A: Yes, our customized requirements for logo, design, outer package are available.
3. Q: What certificates do you have?
A: Our solar products have got ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe) and TUV (Technischen Uberwachungs Vereine).
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.Q: Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
