Wholesale Cheap Panel Solar Costos in Stock Best Price 700W 710W 1000W High Efficiency Mono Solar Panel

Quantity:
Availability:





Inquiry Add to Basket

After-sales Service:
Yes
Warranty:
25 Years
Number of Cells:
144
Application:
Household, Commercial
Condition:
New
Certification:
ISO, CE, TUV

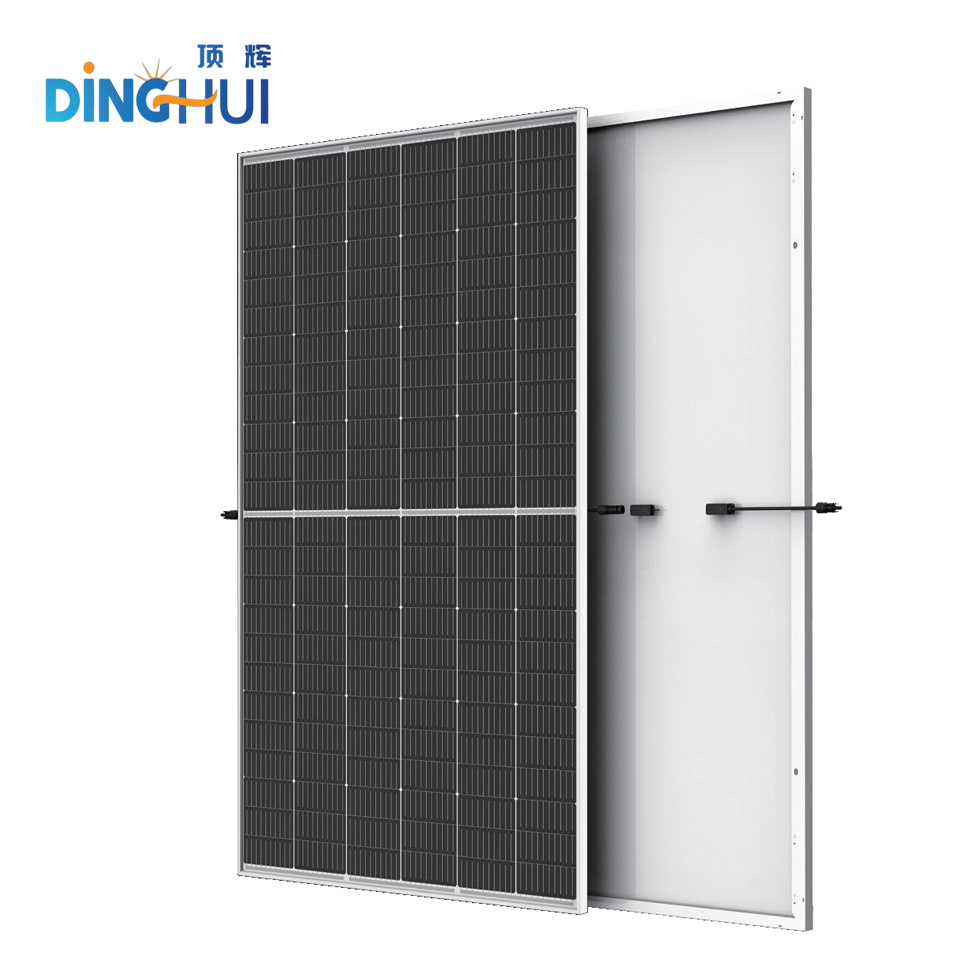

Product Description

Model	DHM72T30-525/MR	DHM72T30-530/MR	DHM72T30-535/MR	DHM72T30-540/MR	DHM72T30-545/MR	DHM72T30-550/MR
Maximum power (W)	525W	530W	535W	540W	545W	550W
Voltage at maximum power point (VMP/V)	41.24V	41.53V	41.82V	42.12V	42.41V	42.71V
Current at maximum power point (IMP/A)	12.73A	12.76A	12.79A	12.82A	12.85A	12.88A
Open circuit voltage (VOC/V)	49.05V	49.20V	49.35V	49.51V	49.69V	49.88V
Short circuit current (ISC/A)	13.61A	13.68A	13.75A	13.82A	13.89A	13.97A
Component efficiency [%]	20.31%	20.51%	20.70%	20.89%	21.09%	21.28%
Power tolerance(W)	0~+5
Standard test environment	Irradiance1000W/m², ambient temperature25ºC, spectrumAM1.5

Product introduction
Cell Orientation	144

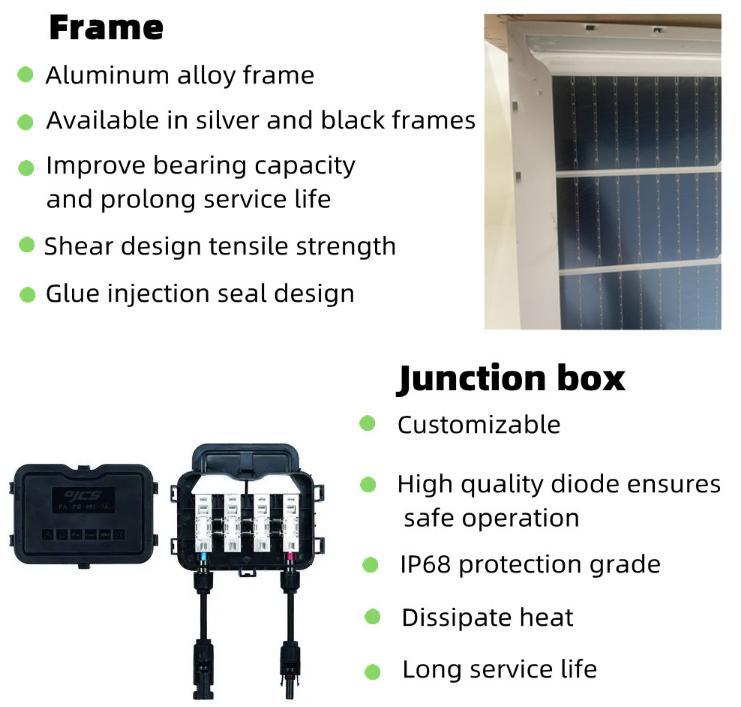

Junction Box	IP68, Three Diodes
Output Cable	4mm², +400, -200mm/±1400mm;length can be customized

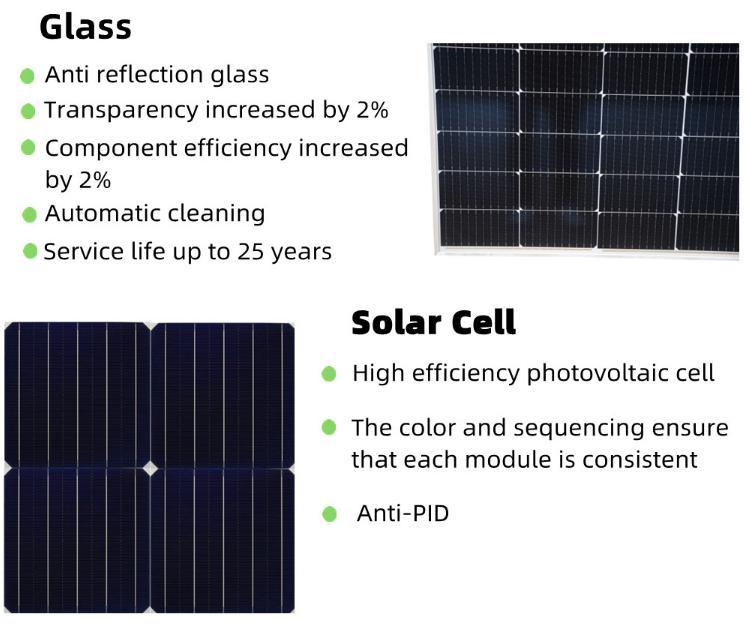

Glass	Single Glass, 3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Weight	32 kg

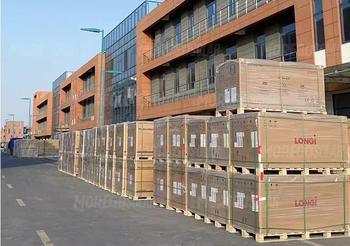

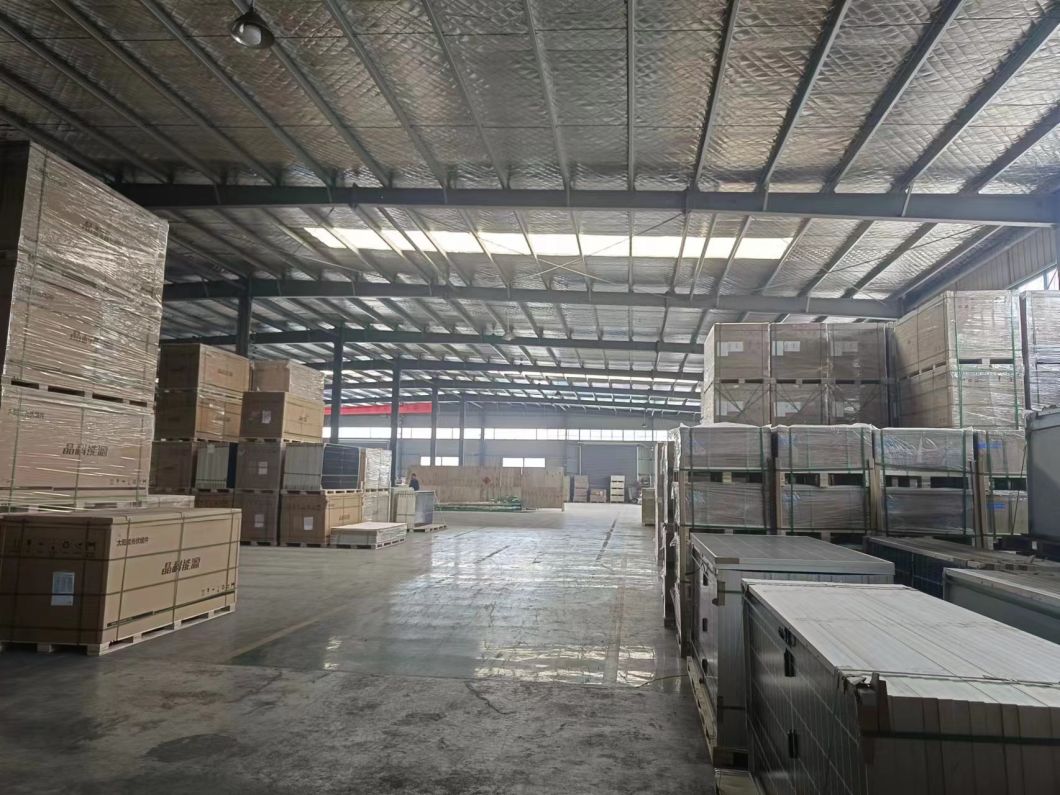

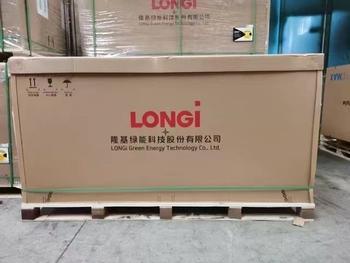

Packaging	31pcs per pallet / 155pcs per 20' GP / 620pcs per 40' HC

Wholesale Cheap Panel Solar Costos in Stock Best Price 700W 710W 1000W High Efficiency Mono Solar Panel

Dinghui New Energy Co , Ltd was established in 2017 , a photovoltaic enterprise integrating R & Dproduction , sales of solar products , which is committed to the overall solution of distributed photovoltaicsystem , providing consulting , design , construction , operation and maintenance andotheroverall services Top companys products include solar cells , solar panels ,Solar off-grid on-grid connected system schemes and other related applicationproducts With excellent product quality , our products have got Iso ( internationalStandardization Organization ) , Coc ( China Quality Certification ) .CE ( Council of Europe ) TUV and other international certifications andhave been exported to many countries and regionsooking forward to working with you.

PRODUCTION
NEW ENERGY NEW WORLD

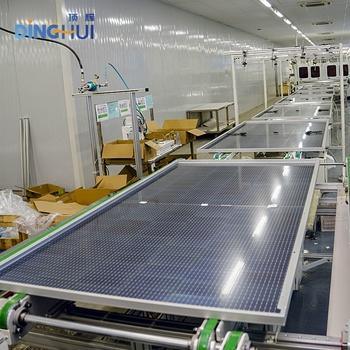

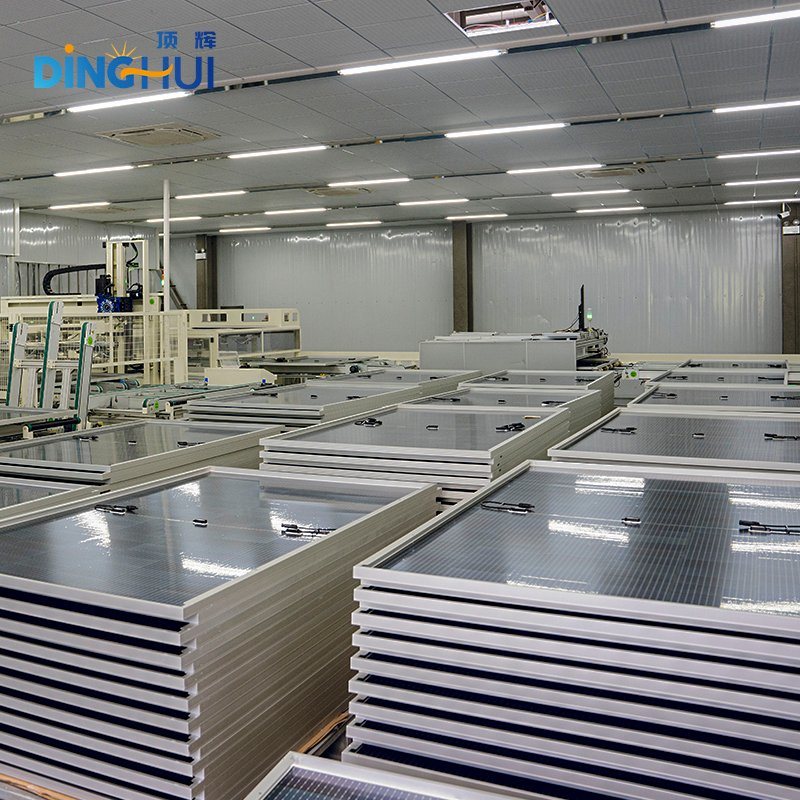

The company introduces most advanced automaticequipment and production process such SSC-7200Cnon-destructive slicer , Autowell AM050E High-speedBus-bar Soldering Stringer , X N 180-HP AutomaticBus-bar Welder , BG08727X2 Fully AutomaticLaminating Machine , Automatic Framing GluingMachine , Automatic Junction Box Welding MachineGS GIV-20A2616 Modules Tester , AutomaticNameplate Sticking Machine , realizing fullautomatic flow line production

Wholesale Cheap Panel Solar Costos in Stock Best Price 700W 710W 1000W High Efficiency Mono Solar Panel

1. Q: Why choose we?
A: 12-year product materials and workmanship warranty and 25-year linear power output warranty.B: Anti-PID (Potential Induced Degradation) performance and rigorous EL testing.C: Excellent low light power generation performance and fully automated component production line.
2. Q: Can I have my own customized product?
A: Yes, our customized requirements for logo, design, outer package are available.
3. Q: What certificates do you have?
A: Our solar products have got ISO (International Standardization Organization), CQC (China Quality Certification), CE (Council of Europe) and TUV (Technischen Uberwachungs Vereine).
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.

5.Q: Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.
